Description

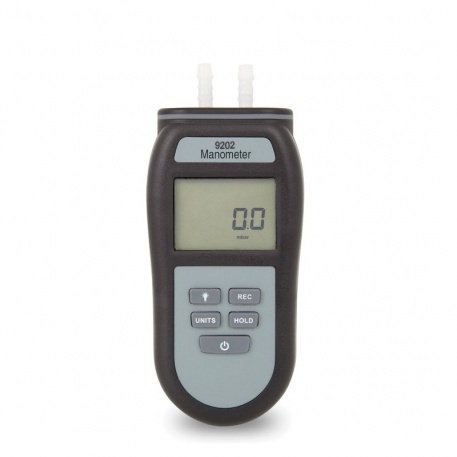

The brand-new 9202 digital manometer empowers users to measure positive and negative differential pressure within the -137.9 to 137.9 mbar range. With a resolution of 0.1 mbar, it boasts overpressure protection at least double the measuring capacity. Designed for ease of use, these manometers are perfect for plumbers and gas engineers, enabling the measurement of domestic gas pressures and low-pressure, non-corrosive air or gases in HVAC applications.
These versatile units find application in measuring air pressure in ductwork or assessing pressure drops across filters to gauge performance. The 9202 manometer sports a customized LCD display featuring P1, P2, diff, hold, open circuit, low battery indication, and a user-selectable backlight. Moreover, it incorporates an auto-power-off feature, shutting down the instrument after about 25 minutes to maximize battery life.
Temperature changes are automatically compensated for by the 9202 pressure meter. Housed in a durable ABS case with an integrated rubber seal, it ensures complete water-tightness and minimizes the risk of damage in challenging environments. The package includes batteries, an operation manual, and two 500 mm long x 6 mm ID connection hoses.
Technical Data
Range & Resolution - PSI: | range: ±2, resolution: 0.01 |
Range & Resolution - INH2O: | range: ±55.36, resolution: 0.01 |
Range & Resolution - MBAR: | range: ±137.9, resolution: 0.1 |
Range & Resolution - KPA: | range: ±13.79, resolution: 0.01 |
Range & Resolution - INHG: | range: ±4.07, resolution: 0.001 |
Range & Resolution - MMHG: | range: ±103.4, resolution: 0.1 |
Range & Resolution - OZIN2: | range: ±32.00, resolution: 0.01 |
Range & Resolution - FTH2O: | range: ±4.613, resolution: 0.001 |
Range & Resolution - CMH2O: | range: ±140.6, resolution: 0.1 |
Range & Resolution - KGCM2: | range: ±0.1406, resolution: 0.001 |
Range & Resolution - BAR: | range: ±0.1379, resolution: 0.001 |
Accuracy: | ±0.5%FS or Better (25°C) |
Repeatability: | ±0.2 % (Max. 0.5 %FS) |
Battery: | 3 x 1.5 volt AAA |
Battery life: | 100 hours |
Display: | custom LCD |
Dimensions: | 32 x 71 x 141 mm |
Weight: | 185 grams |
