Description
Chemline BT/BC Series Ball Check Valves have a wide selection of body and seat materials. It has good flow capacity and will handle many slurry and suspended solid services. This valve works in both horizontal and vertical lines. The Foot Valve is for end of line services such as sumps.
BC/BT Series Check Valves

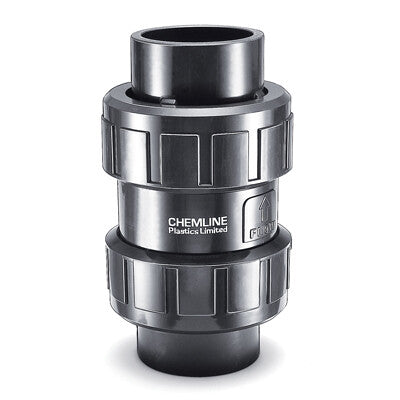

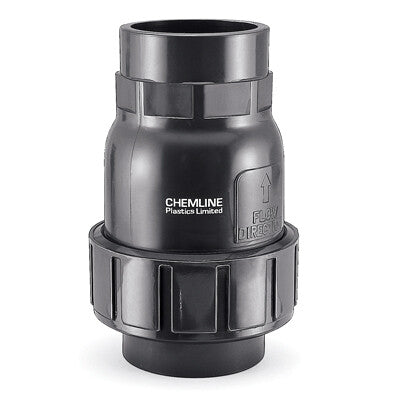

The BT Series (True Union) and BC Series (Single Union) Ball Check Valves is the most popular type of non-return valves for pipe sizes up to 4″.

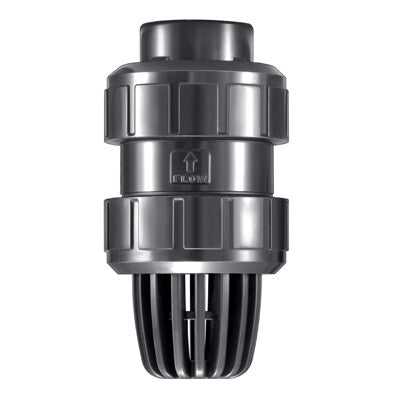

FT/FV Series Foot Valves
The Foot Valve is available in true union up to 2″ and up to 4″ in Single Union.
✓ May be used either horizontally or vertically
✓ Excellent flow characteristics
✓ Low seating and opening pressures
✓ Built-in Union Design For easy installation and maintenance
✓ Free Floating Ball The only moving part
✓ Uni-seat/Seal Easily removable
