Description

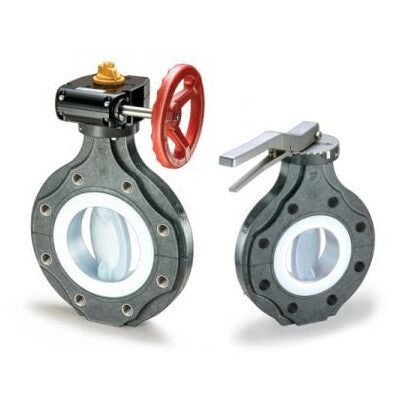

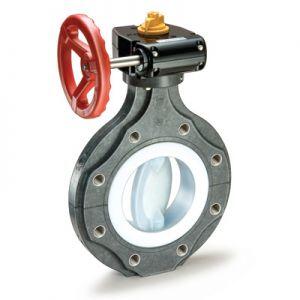

ChemValve Type CST-K fluoropolymer lined butterfly valves feature a composite plastic body. These valves are designed for zero leakage in the toughest of corrosive applications up to 130oC (265oF) at 150 psi. The high density TFM liner provides superior performance vs. conventional PTFE lined valves. The one-piece shaft/disc is over-moulded with PFA. The vinyl ester body reinforced with carbon and glass fibres is essentially indestructible and has outstanding external corrosion resistance.
✓ Light Weight A 72” Damper Butterfly Valve weighs 950 lbs.
✓ Custom Designed Engineered for specific service condition
✓ High Strength Made of high elongation vinyl ester resin for high resistance to impact and thermal shock.
✓ Abrasion Resistant Valves can be designed to provide high abrasion resistance outperforming all other materials of construction
Downloads
 |
Technical Datasheet |
