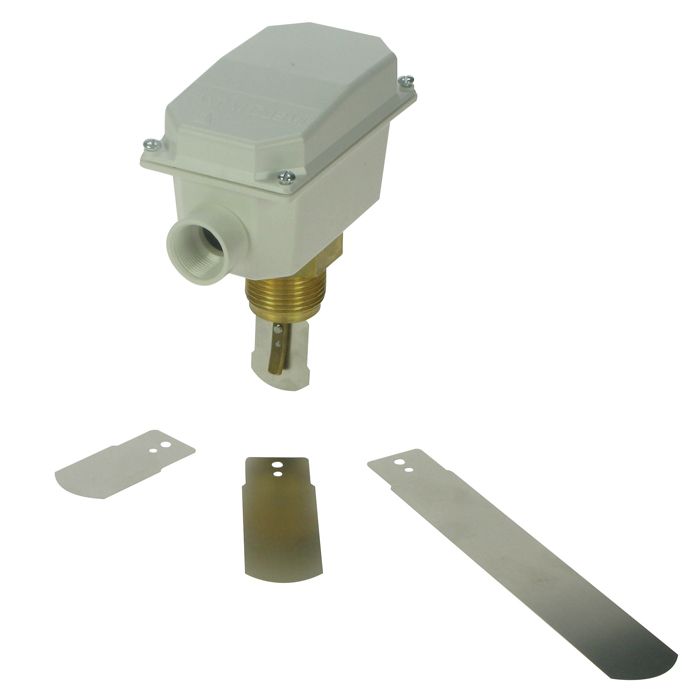

Fantini Cosmi Fluid Flow Paddle Switch With Flexible Blade

Description

A fluid flow switch is used to signal & control the liquid flow in pipelines to control pumps, compressors, burners & valves.

Features

- A flexible blade, moved by the flow, acts on the operating lever of an SPDT microswitch.

- 4 blade lengths: 35mm, 58mm, 89mm & 167mm.

- Complies to standards CEI EN 60947‑5‑1, CEI EN 60529.

- Stainless steel paddles.

- Continuous duty current rating 10A.

- Direct fixing G1" threaded connection.

- Wiring connections by female fast on 6.3mm.

- Earth connection.
