Description

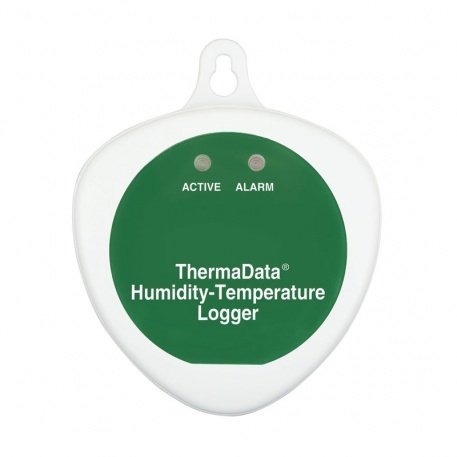

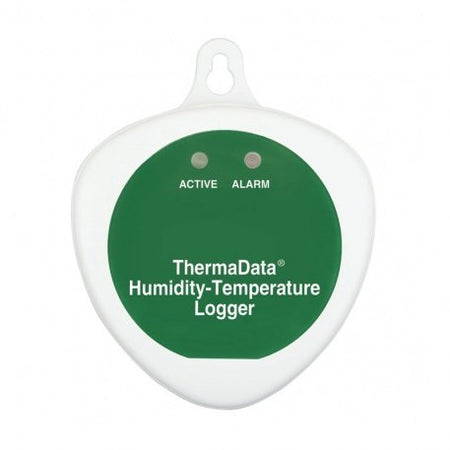

The HTB Humidity Data Logger stands as a portable, blind humidity logger designed for measuring and recording relative humidity (% RH) and temperature. It operates within -20 to 85°C and 0 to 100% RH. Applicable across various scenarios, such as HVAC climate monitoring, QA control, and storage areas, the humidity and temperature ThermaData® loggers offer versatile utility. Please note that when placing orders for loggers, including at least one ThermaData® logger cradle is essential.
At programmable intervals, the HTB humidity logger records both temperature and humidity concurrently, storing a maximum of 16,000 readings (8,000 humidity and 8,000 temperature). Equipped with internal humidity and temperature sensors, the ThermaData® HTB humidity data logger features a red and green LED. The flashing green LED signifies that the logger is active/logging, while the flashing red LED indicates surpassing pre-set alarms.
For added convenience, an optional 3-point (25, 50 & 75 % RH) UKAS Humidity Calibration Certificate is available at a preferential price when purchased alongside these therma-hygrometers. This option can be selected from the drop-down menu.
It's important to note that the Humidity Sensors enclosed in these products may be sensitive to contamination from pollutants like solvents and exposure to saturated air. Consequently, they are not covered under the 2-year warranty. Additionally, a gradual drift in the sensor's readings, up to 0.5% per year, is expected. The ThermaData® Studio PC software, compatible with all ThermaData Logger models, including wireless ones, provides a powerful yet user-friendly platform for organizing and analyzing temperature data to generate management insights.
Technical Data
Range - temperature: | -20 to 85°C |
Range - humidity: | 0 to 100%rh |
Resolution - Temperature: | 0.1°C |
Resolution - humidity: | 0.1%rh |
Accuracy - temperature: | ±0.5°C (0 to 45°C), ±1°C (-20 to 70°C), ±1.5°C (+70 to 85°C) |
Accuracy - humidity: | ±3 %rh @ 25°C (10 to 90 %rh) |
Hysteresis - humidity: | ±1% rh |
Memory: | 2 x 8000 readings |
Sample rate: | 6 seconds to 255 minutes |
Battery: | 3.6 volt half AA lithium |
Battery life: | 2 years minimum |
Sensor type: | temperature: silicone bandgap - humidity: capacitance polymer |
Display: | 2 LED's |
Dimensions: | 76 x 23mm |
Weight: | 80 grams approx. - model dependant |
Case material: | ABS plastic with Biomaster anti-bacterial additive |
Country of manufacture: | United Kingdom |
Guarantee: | two years |
Water/dust resistance: | water resistant |
Measurement scale: | Celsius/Fahrenheit & %rh |
OS: | Windows |
