Description
Complete lighting solution for 4-post lifts

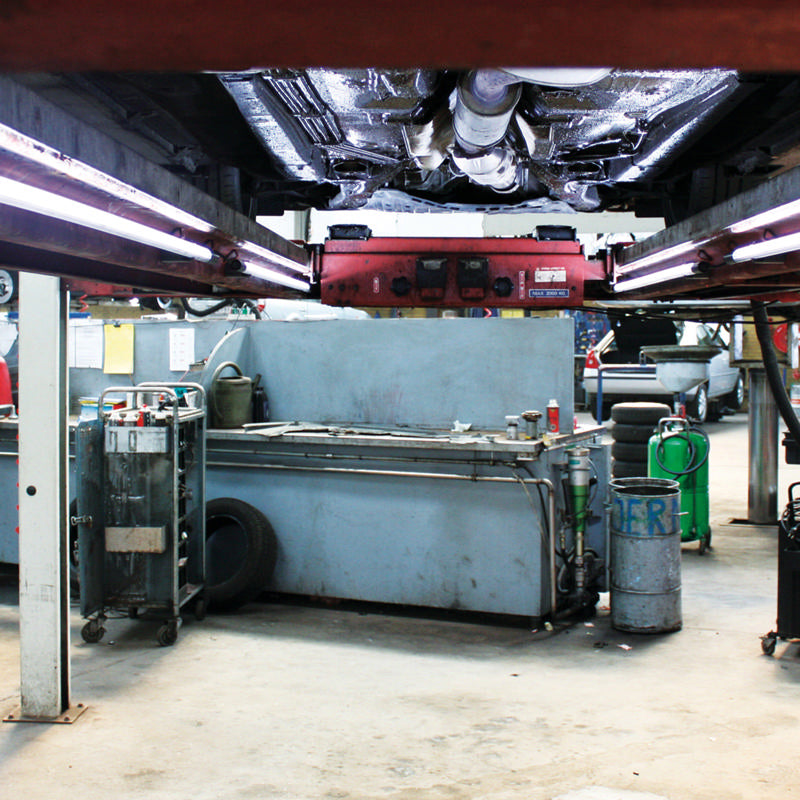

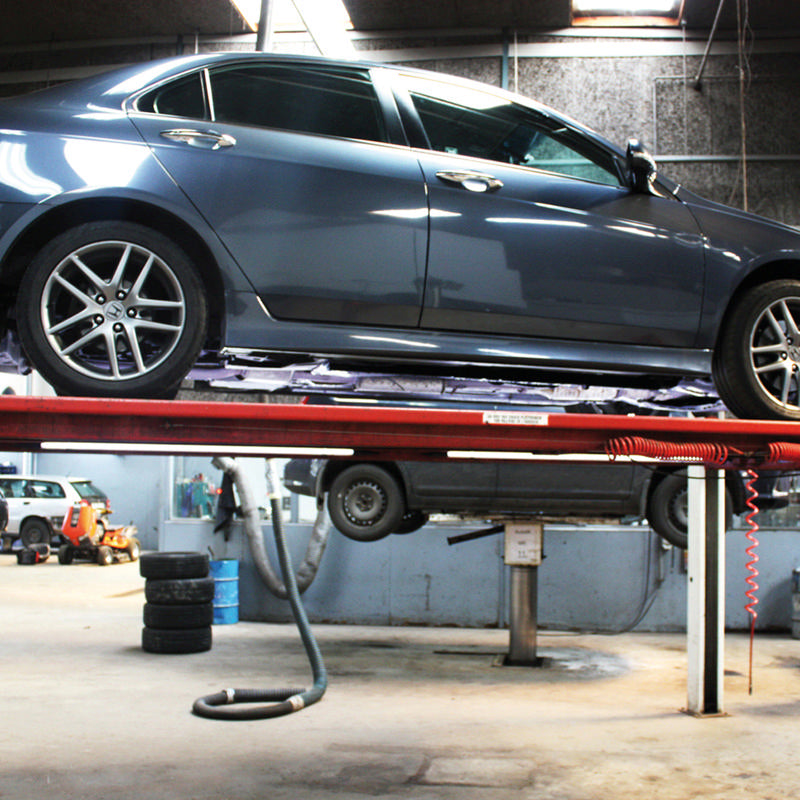

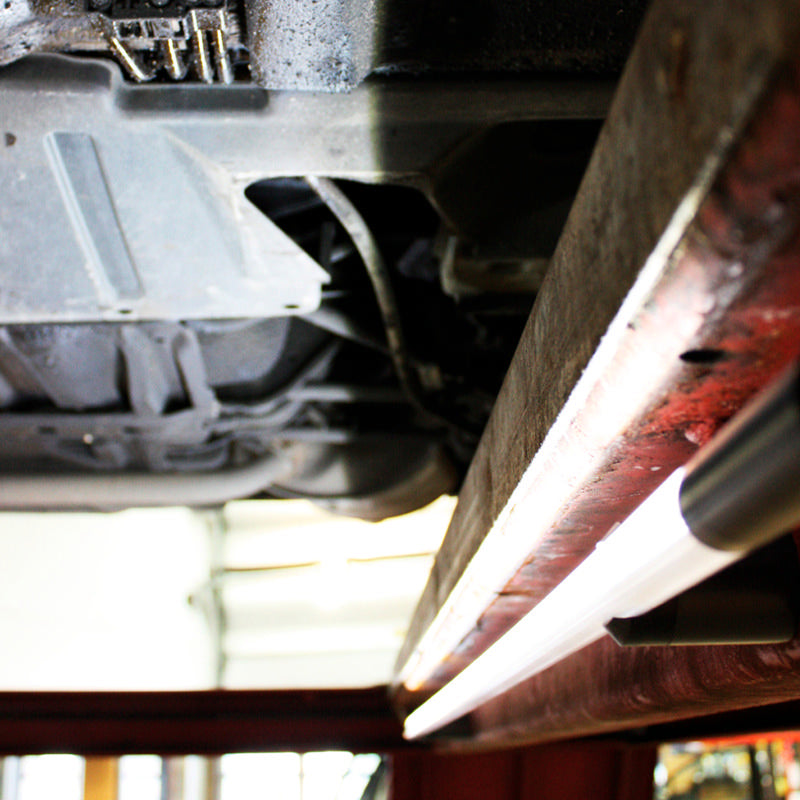

LINE LIGHT 4 is a unique lighting solution for universal application on 4-post lifts providing an extremely powerful illumination of the entire undercarriage. The slim and compact design (only ø25mm) leaves space for the center jack to pass.
LINE LIGHT 4 has been upgraded from 1400 to 2750 lumen, and compared to traditional 36W fluorescent tubes, it provides extremely bright illumination with low power consumption. LINE LIGHT 4 concentrates the light in a 75° beam angle, avoiding blinding during work. The lamp itself can be turned to provide the optimum lighting angle.
Extremely sturdy and shockproof lighting solution
LINE LIGHT is constructed by a closed extruded acrylic profile (PMMA) with built-in prism containing a LED PCB and end-covers in black anodized aluminium. It is extremely sturdy, shock- and waterproof (IP67) to resist wet and dirty workshop environment. The technical lifetime of LEDs is at least 100,000 hours.

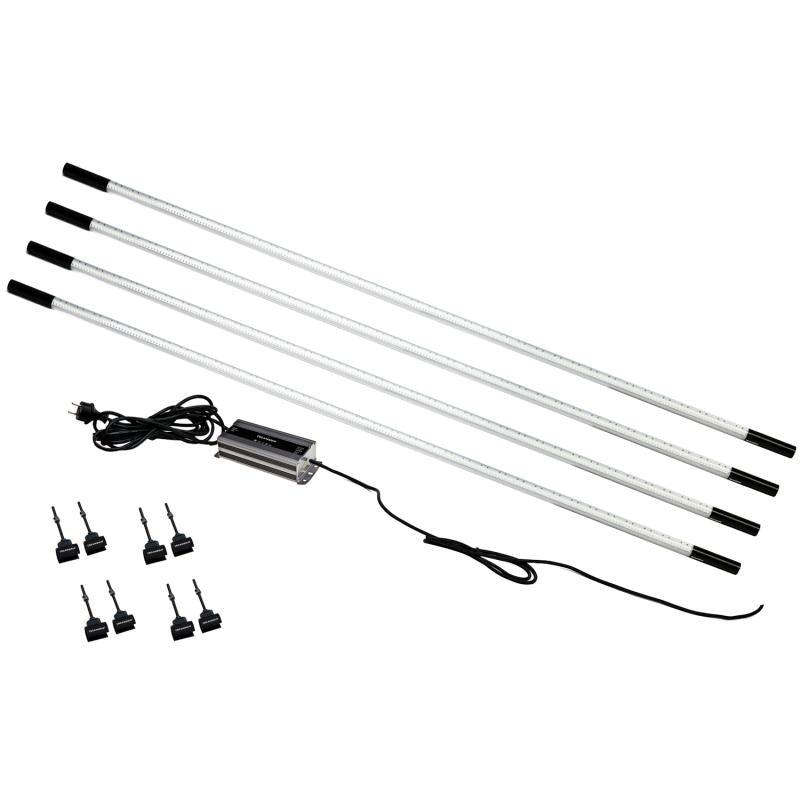

LINE LIGHT 4 consists of 4 lighting units 1630mm incl 80W power supply unit, 8 m cable, the LINE LIGHT DIMMER and complete suspension fittings. As LINE LIGHT is a low voltage (24V DC) system, you can easily do the installation yourself. All basic fittings are supplied with each kit together with power supply and cable.
The pre-defined LINE LIGHT kit is considered universal and will fit the majority of all automotive 4-post lifts, regardless of the manufacturer or brand.
Why you should choose LINE LIGHT 4
- “Unbreakable”- extremely sturdy and shockproof lighting solution made for 4-post lifts
- Waterproof To Resist Wet And Dirty Workshop Environment
- Low Voltage 24v Dc
- Technical Lifetime Of Leds 100.000 Hours
- Made In Denmark
// The design of LINE LIGHT 4 is unique and covered by EU design patent RCD No 1882523.
Details
Packaging
Black cardboard box
In the box
4 x Lighting units, cable, power supply, fittings, manual
Gross weight, packaging (kg)
6.02
Length, packaging (mm)
1,645.00
Width, packaging (mm)
220.00
Height, packaging (mm)
115.00
Sales display included
No
Main Light
Luminous Flux, Max (Lumen)
2750
Illuminance, Max (Lux@0,5m)
3000
Illuminance Distance (Meter)
0.50
Light Source
4 x 216 SMD LEDs
LED performance (lm/w)
189
Electrical
Cable
8m / H03VV-F 2x 0,5 mm2
Charging input voltage (V)
100-240V AC 50/60Hz
Plug type
Type F (Schuko plug)
Max Power Consumption (W)
104.00
Operating voltage AC (V)
24V DC
Operation
Operating temperature
-10 °C to +40 °C
Impact resistance (meter)
1.00
Product Line
Product family
LINE LIGHT
