£0.00 In Stock Sold out
Complete lighting solution for truck lifts and lifts for other heavy vehicles

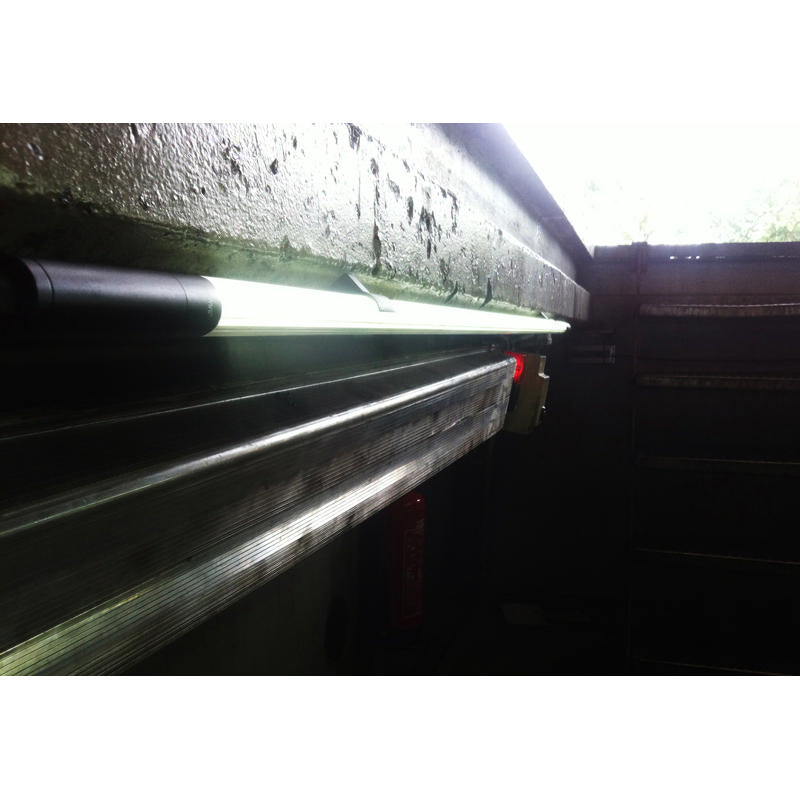

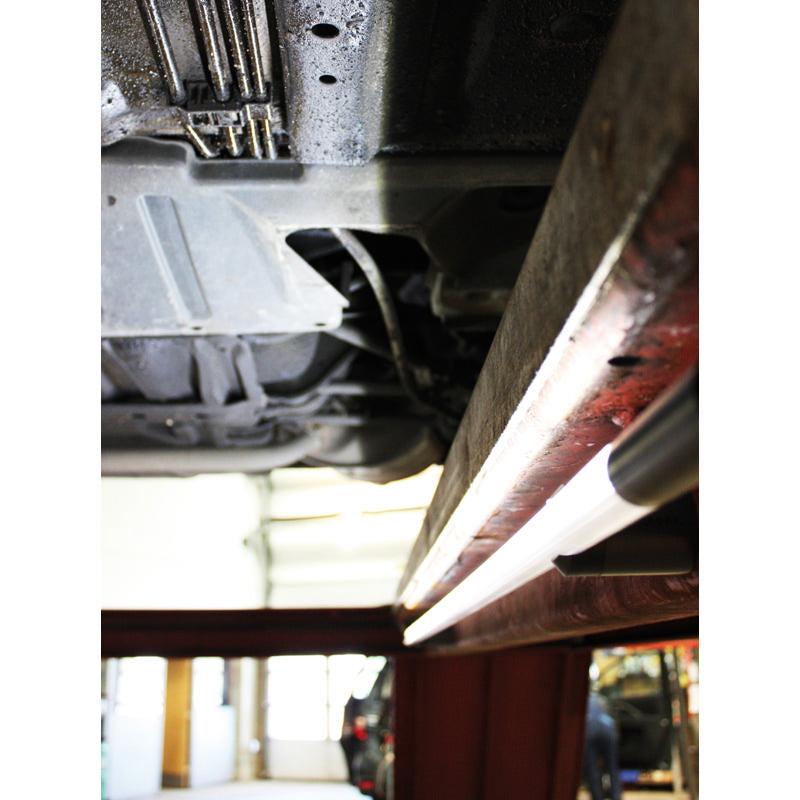

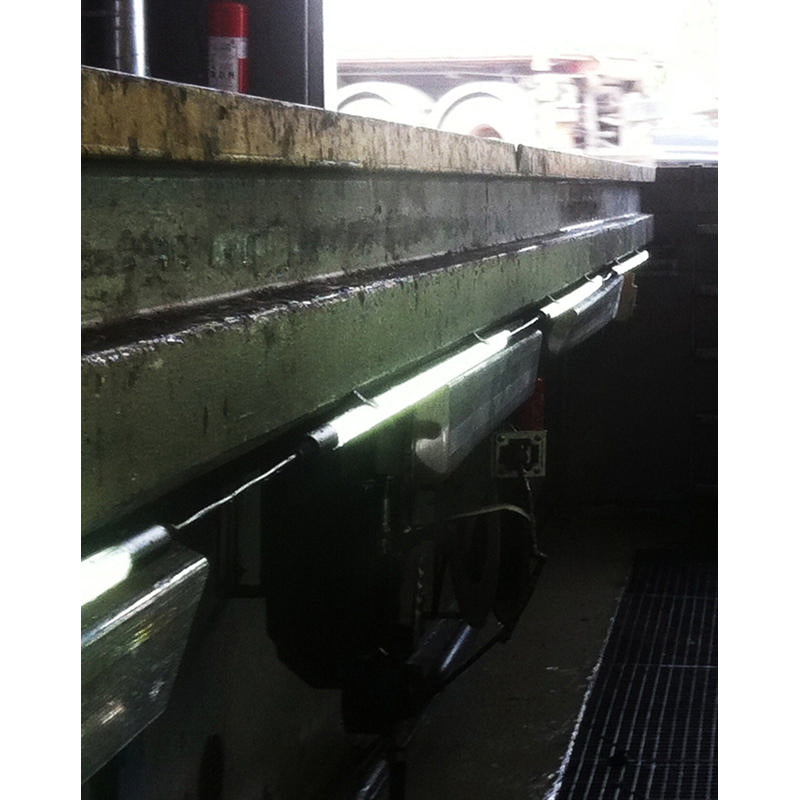

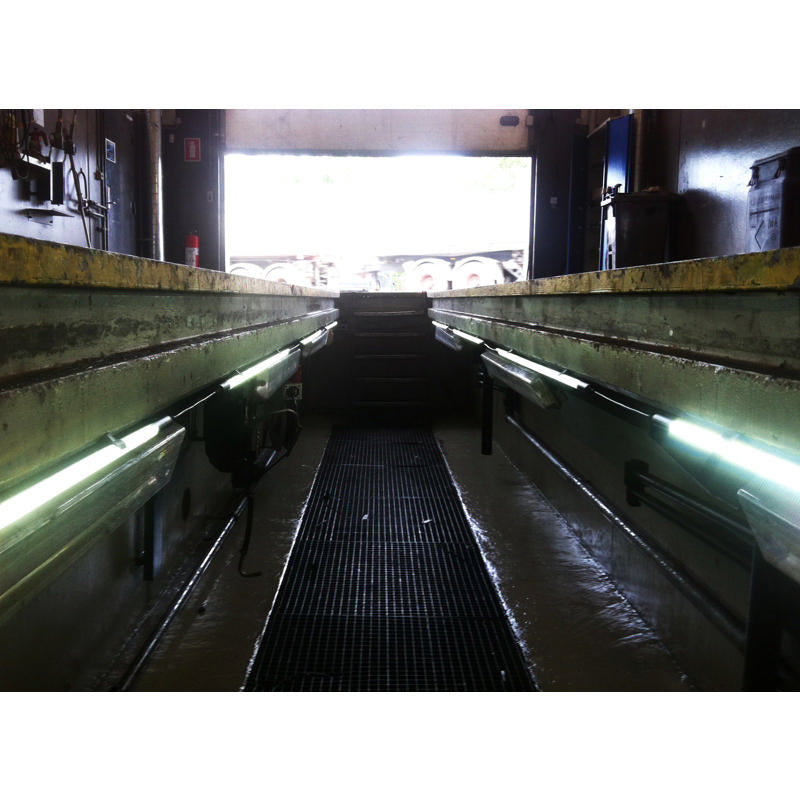

LINE LIGHT 6 is a powerful lighting solution for universal application on truck lifts and lifts for other heavy vehicles like buses providing you with bright illumination exactly where you need it. Because of the high flexibility, LINE LIGHT can be adapted to the specific truck mechanic's pit.

LINE LIGHT 6 has been upgraded from 1400 to 2750 lumen, and compared to traditional 36W fluorescent tubes, it provides extremely bright illumination with low power consumption. It concentrates the light in a 75° beam angle which means that blinding during work is avoided. The lamp itself can be turned to provide the optimum lighting angle.

Extremely sturdy and shockproof lighting solution

The design is slim and compact design (only ø25mm). LINE LIGHT is constructed by a closed extruded acrylic profile (PMMA) with built-in prism containing a LED PCB and end-covers in black anodized aluminium. It is extremely sturdy, shock- and waterproof (IP67) to resist wet and dirty workshop environment. The technical lifetime of LEDs is at least 100,000 hours.

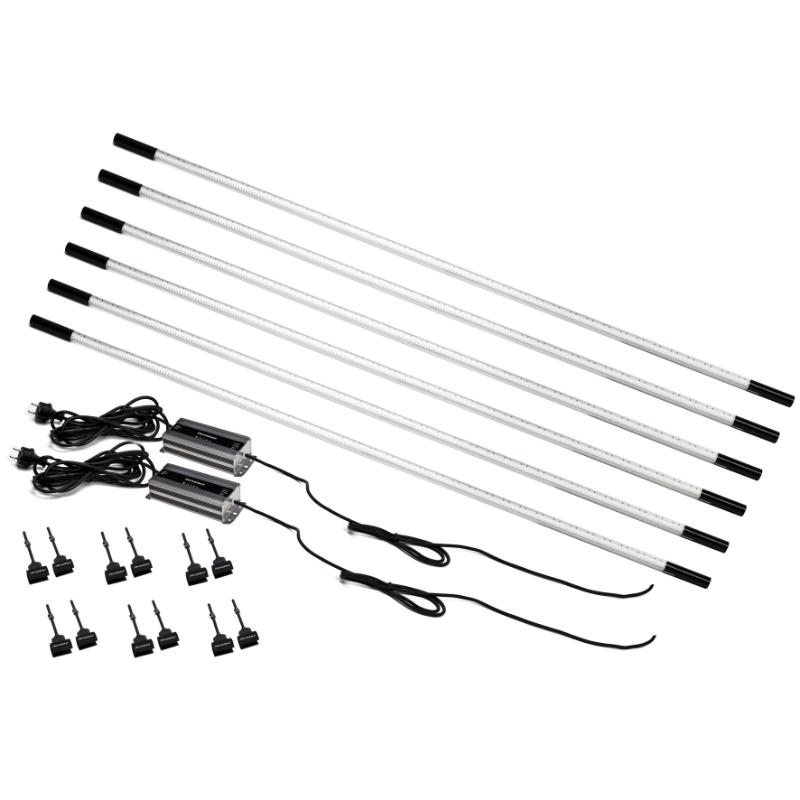

LINE LIGHT 6 consists of 6 lighting units 1630mm incl 2 pcs 80W power supply units, 2x8 m cable and complete suspension fittings. As LINE LIGHT is a low voltage (24V DC) system, you can easily do the installation yourself. All basic fittings are supplied with each kit together with power supplies and cable.

Available as accessory, the LINE LIGHT DIMMER lets you adjust the light intensity seamlessly.

Why you should choose LINE LIGHT 6
  • “Unbreakable”- extremely sturdy and shockproof lighting solution made for truck lifts
  • Waterproof To Resist Wet And Dirty Workshop Environment
  • Low Voltage 24v Dc
  • Technical Lifetime Of Leds 100.000 Hours
  • Made In Denmark

// The design of LINE LIGHT 6 is unique and covered by EU design patent RCD No 1882523.

Product Number 03.5200 EAN number 5708997352007 Product types Tubelight Net Weight (kg) 4.10 Length (mm) 0,00 Width (mm) 25.00 Height (mm) 1,630.00 Packaging Black cardboard box In the box 6 x Lighting units, cable, power supply, fittings, manual Gross weight, packaging (kg) 9.34 Length, packaging (mm) 1,645.00 Width, packaging (mm) 240.00 Height, packaging (mm) 230.00 Sales display included No Qty in outer box 1.00
Luminous Flux, Max (Lumen) 2750 Illuminance, Max (Lux@0,5m) 3000 Illuminance Distance (Meter) 0.50 Light Source 6 x 216 SMD LEDs LED performance (lm/w) 189 CCT (Kelvin) 6000 CRI Ra > 80 Beam Angle Main 75°
Power source 24V Cable 8m / H03VV-F 2x 0,5 mm2 Charging input voltage (V) 100-240V AC 50/60Hz Plug type Type F (Schuko plug) Max Power Consumption (W) 156.00 Operating voltage AC (V) 24V DC Charger included No
Ingress protection IP67 Impact protection IK07 Operating temperature -10 °C to +40 °C Impact resistance (meter) 1.00
Product line WORK LIGHTS Product family LINE LIGHT
