£0.00 In Stock Sold out
Handy EX PROOF hand lamp with 180° tiltable lamp head

SCANGRIP's EX PROOF line is made for hazardous atmospheres with explosion dangers. The explosion proof line is ideal for offshore work, the chemical industry, tank vehicles, refineries and many more. Long story short – the EX PROOF line is perfect for all industries where gas and dust are a safety risk.

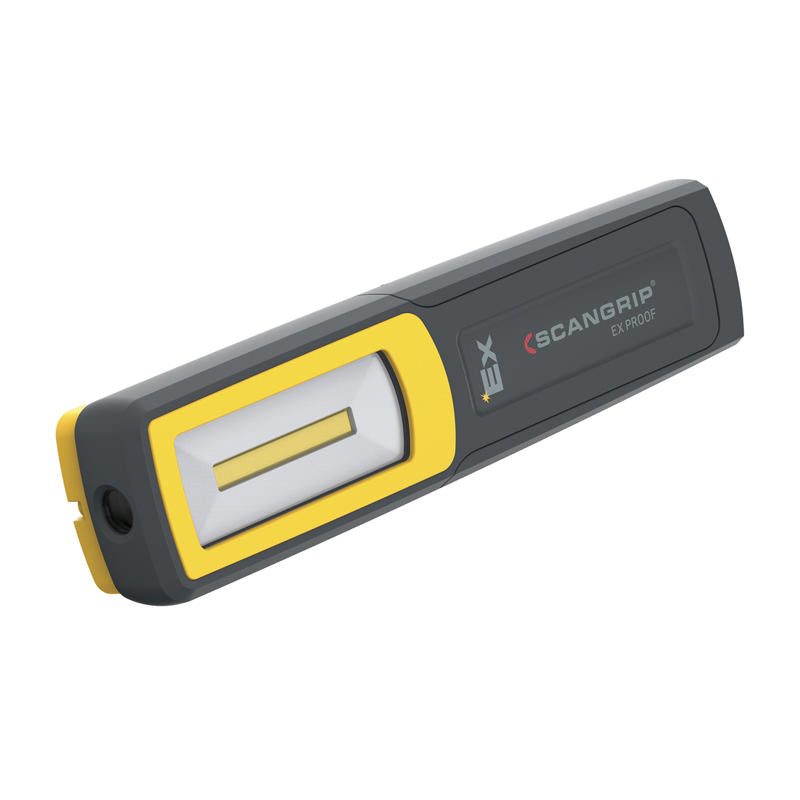

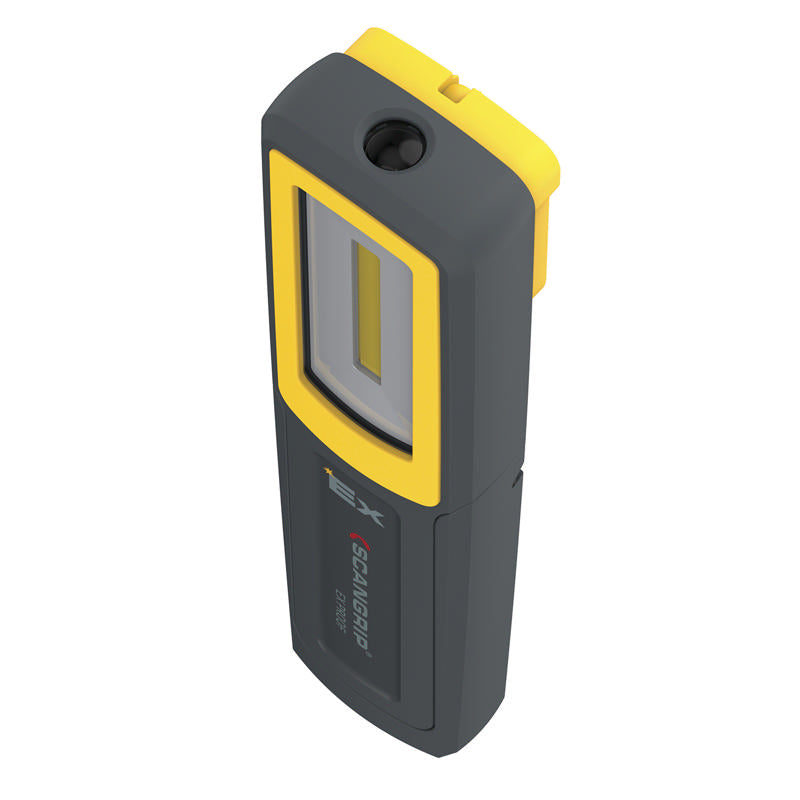

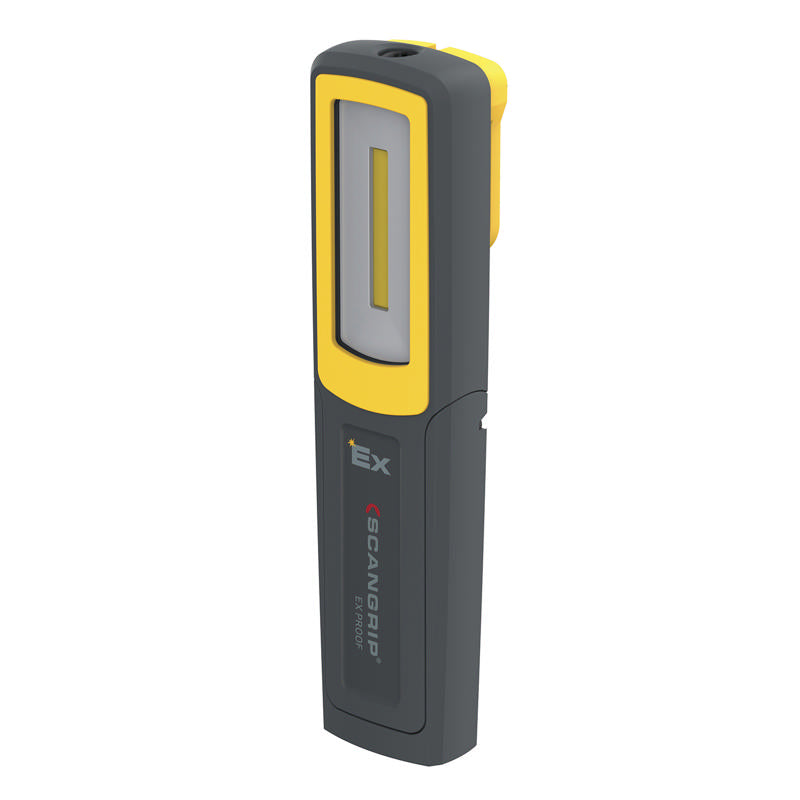

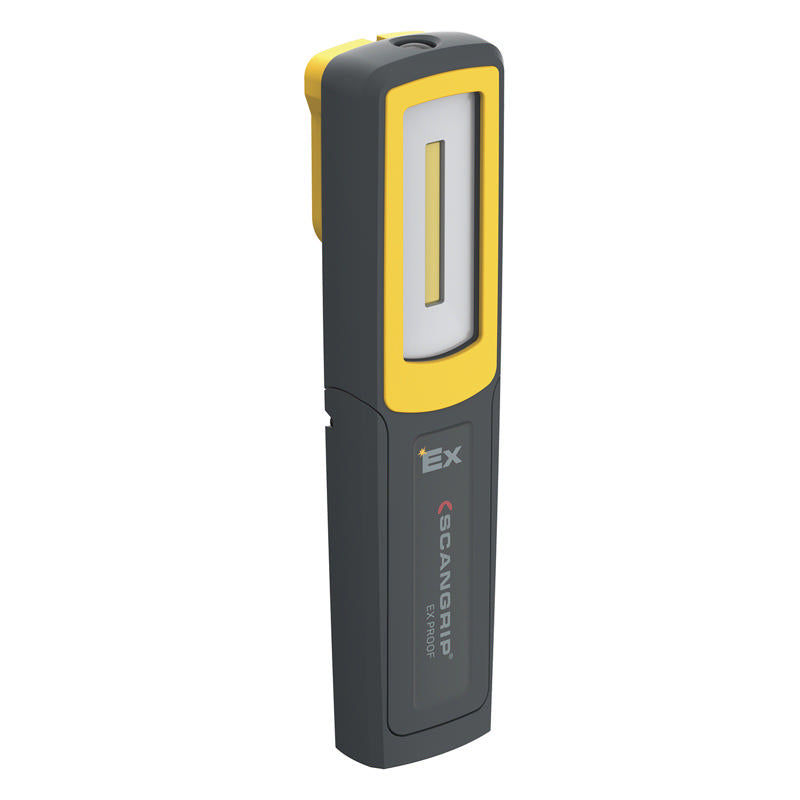

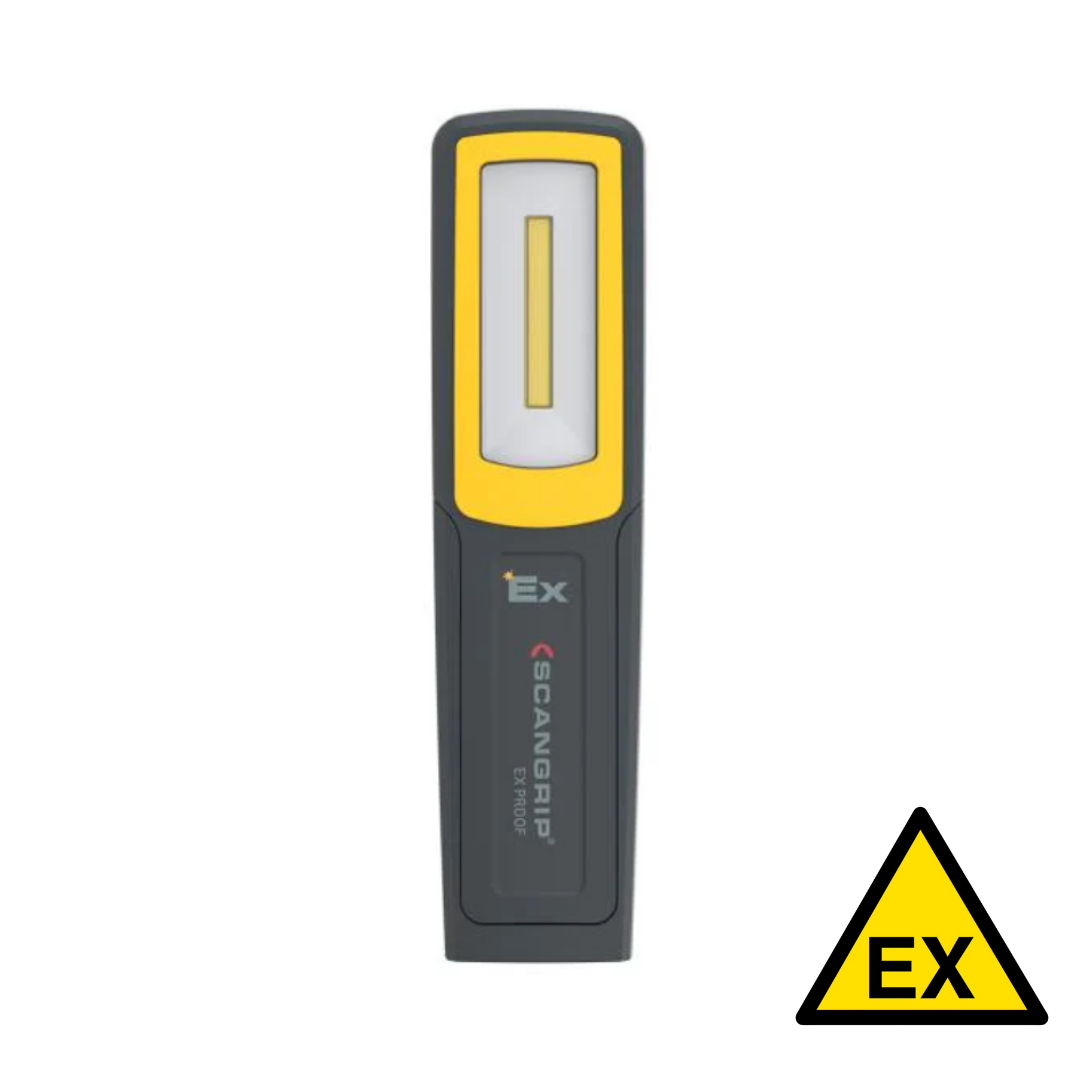

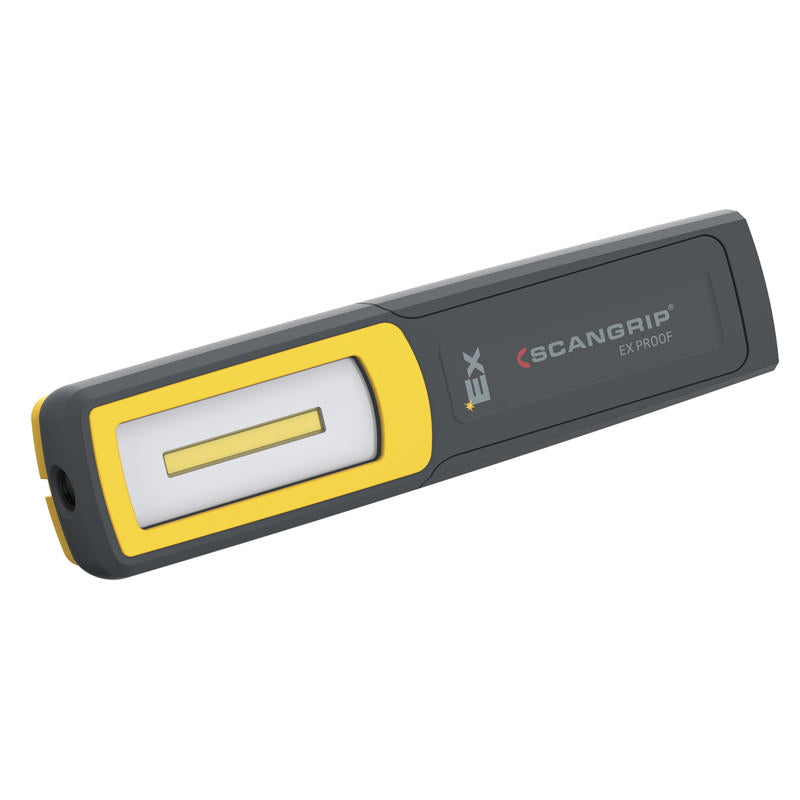

MIDI-EX is a very handy, rechargeable COB LED explosion proof light made for hazardous locations with risk of explosion.

The hand lamp is equipped with COB LED light providing a unique, powerful and completely uniform illumination which is ideal for working light.

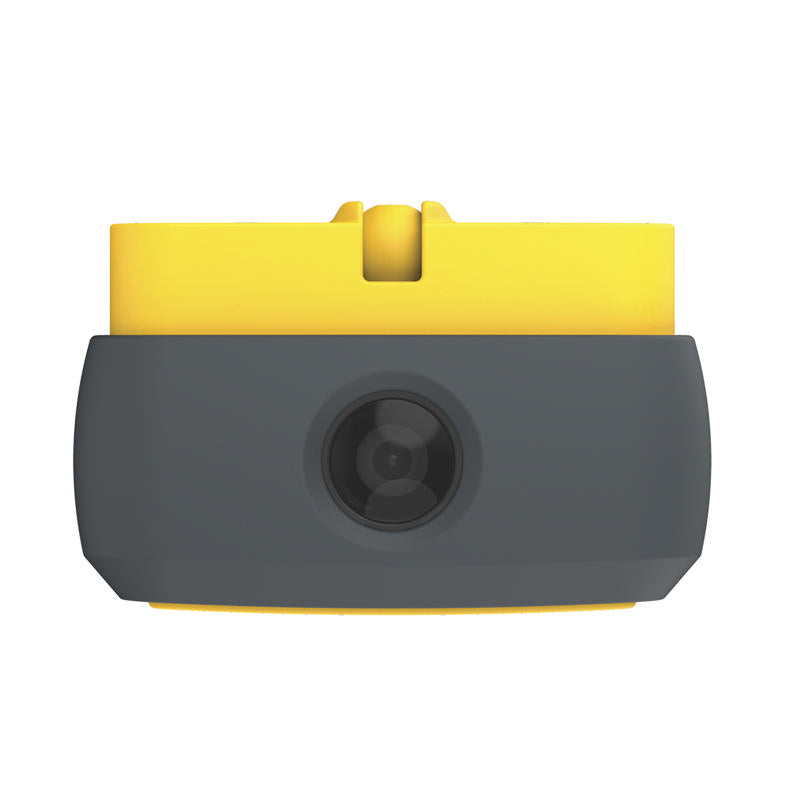

MIDI-EX is supplied with both mainlight and toplight. The main light offers two-step operating options depending on the type and duration of the work carried out: Step 1 = 50 %, step 2 = 100 % light output.

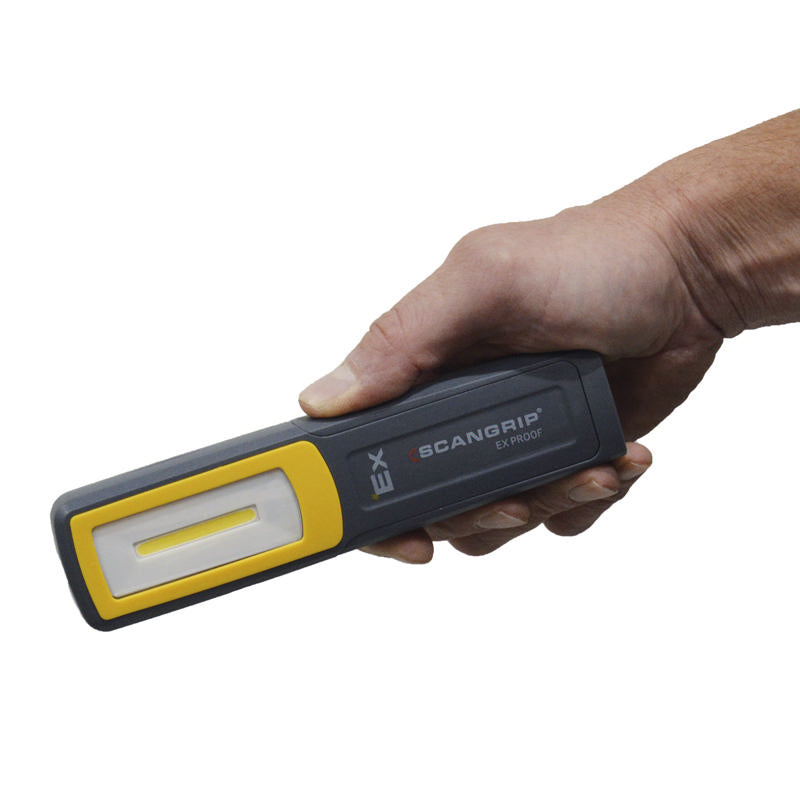

The extremely durable MIDI-EX lamp features a sturdy surface and the shape of the lamp provides a comfortable, ergonomic grip.

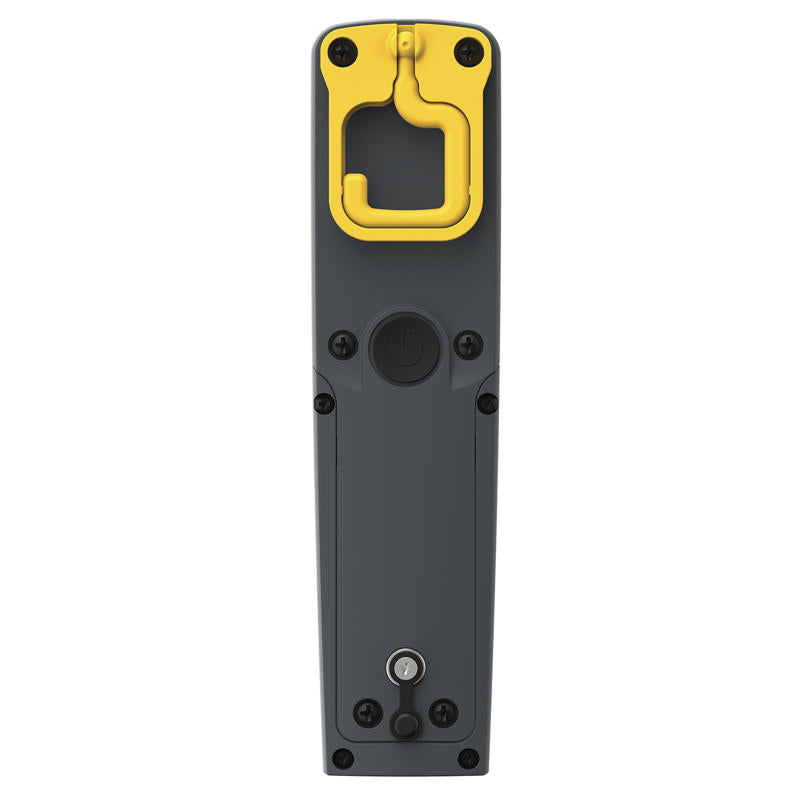

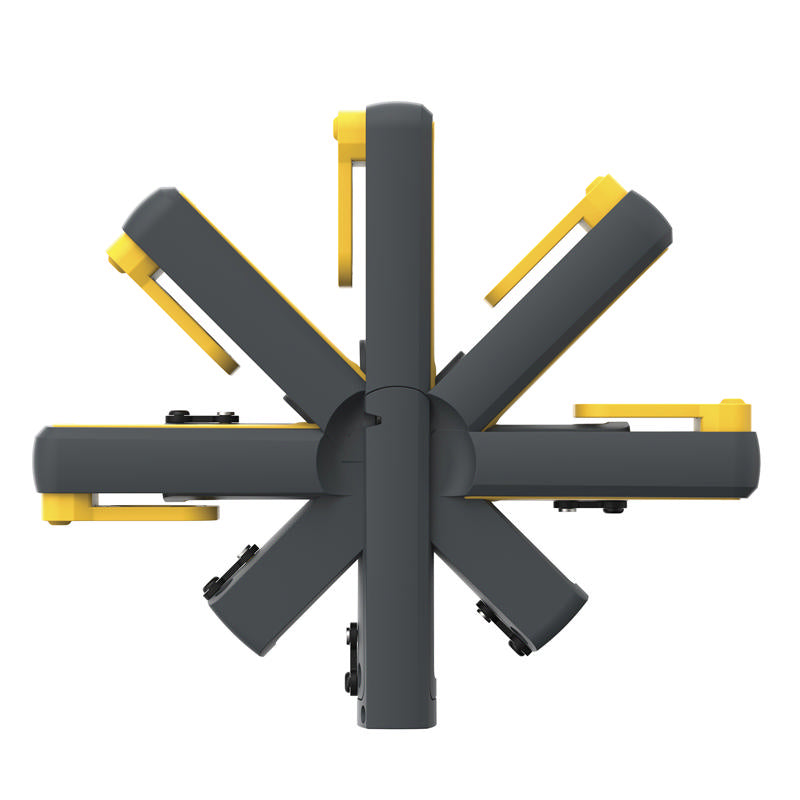

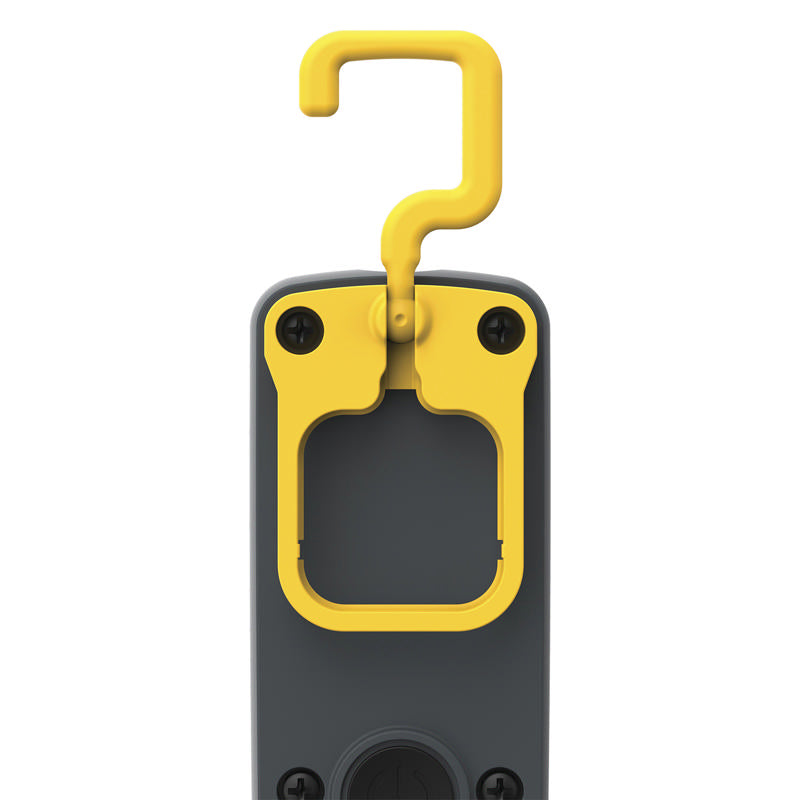

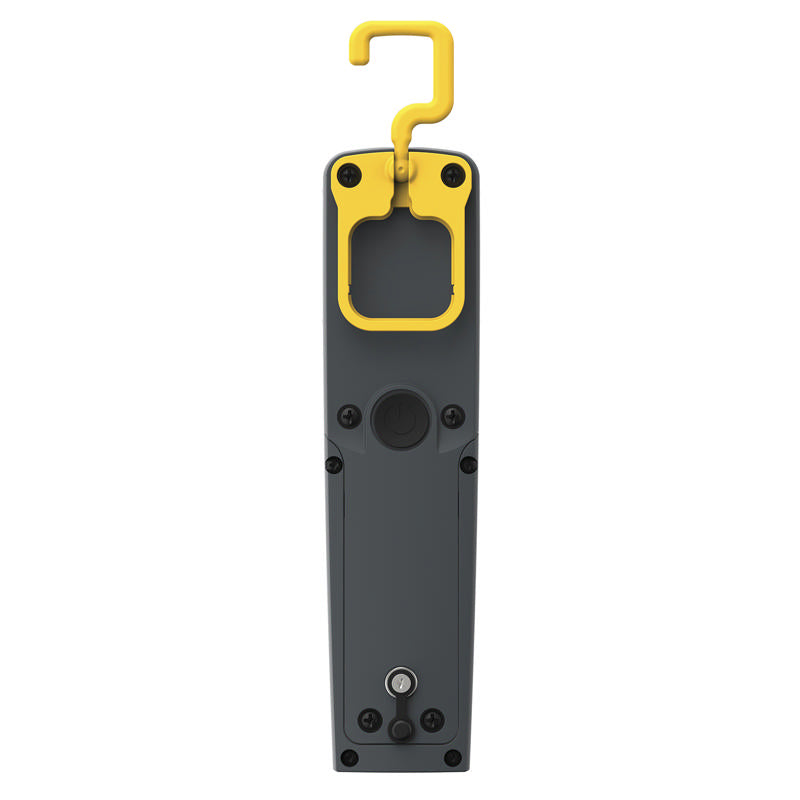

Place the explosion proof LED hand lamp everywhere you want during inspection work with the turnable sturdy hook or the strong built-in magnet in the bottom to have both hands free for working. The flexible lamp head tilts up to 180°.

It is designed to carry in the pocket or in the work belt by the built-in belt clip. In this way, you always have the work light close at hand when you need efficient and bright illumination for a job.

Why choose MIDI-EX?
  • Ultimate flexibility with the 180° turnable lamp head.
  • Equipped with a 2-step dimmer function
  • Ergonomically designed for a comfortable and firm grip
  • Providing a powerful and uniform illumination
  • 2-in-1 explosion proof flashlight and hand lamp in one

// The design of MIDI-EX is unique and covered by EU design patent RCD No 5597010.

II 3G Ex ic IIC T5 Gc

II 3D Ex ic IIIC T100°C Dc

// MIDI-EX is approved and certified by TÜV SÜD according to the ATEX Directive no. 2014/34/EU effective from April 2016 and according to IECEx.

ATEX certificate no. TPS 18 ATEX 054006 0015 X Rev.00

IECx certificate no. IECEx TPS 18.0018X

Product Number 03.5611 EAN number 5708997356111 Product types Hand Lamp Net Weight (kg) 0.18 Length (mm) 181.80 Width (mm) 46.00 Height (mm) 29.00 In the box Lamp, charger, usb cable, manual Gross weight, packaging (kg) 0.22 Length, packaging (mm) 188.00 Width, packaging (mm) 95.00 Height, packaging (mm) 50.00 Sales display included No Qty in outer box 24.00
Luminous Flux, Max (Lumen) 200 Luminous Flux, Min (Lumen) 100 Illuminance, Max (Lux@0,5m) 280 Illuminance, Min (Lux@0,5m) 140 Illuminance Distance (Meter) 0.00 Light Source COB LED CCT (Kelvin) 6000 CRI Ra >80 Beam Angle Main 105°
Power source Rechargeable Battery Battery type Li-ion Battery capacity (mAh) 1600 Battery voltage (V) 3.80 Cable 1 m USB to mini DC Charging input voltage (V) 100-240V AC / 50-60Hz Plug type Type C (Euro plug) Max Power Consumption (W) 3.00 Charger included No
Operating time with min. lumen (hours) 5.00 Charging time (hours) 3.50 Ingress protection IP65 Operating temperature -10° to +45°C EX Zones 2 and 22 Impact resistance (meter) 1.00 Operating time with max. lumen (hours) 2.50
Product line EXPROOF
