MINI MAG PRO

In stock
SKU: 3.5692
Regular price £0.00

Got questions?

Feel free to get in touch

Description

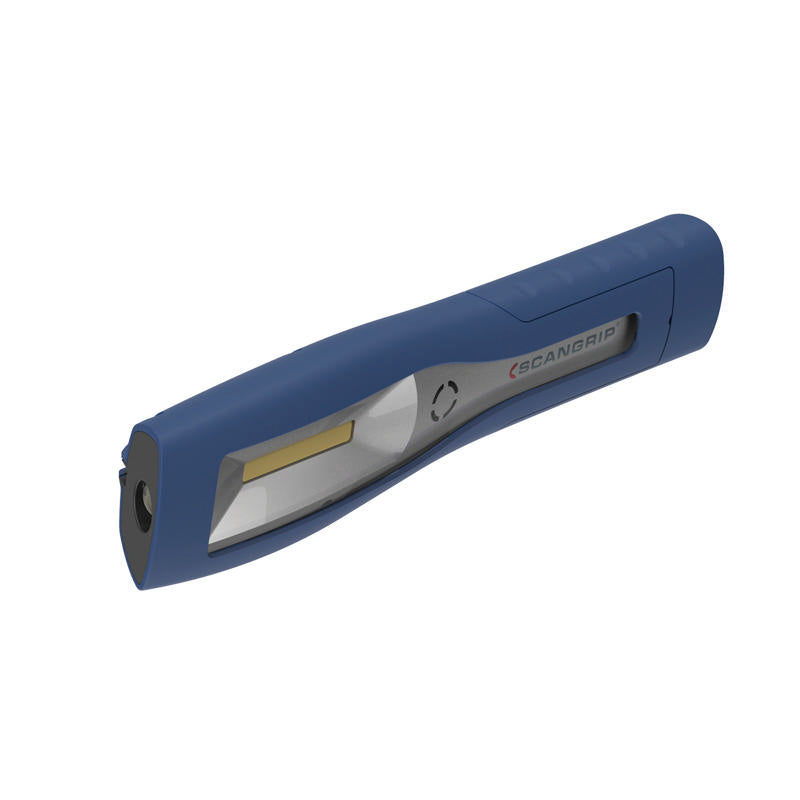

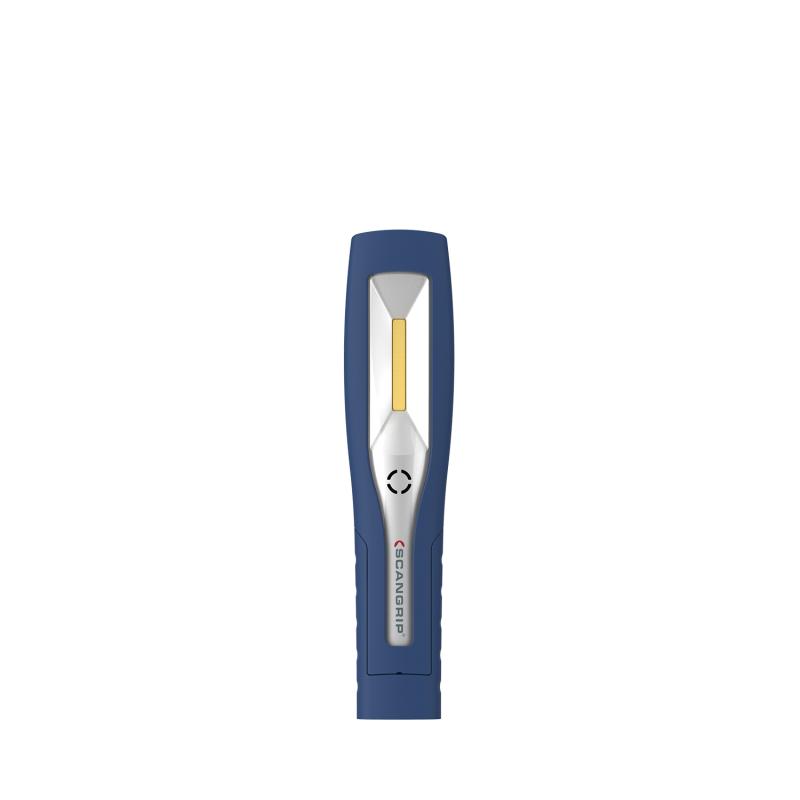

Small rechargeable LED hand lamp for inspection work

MINI MAG PRO is a pocket-sized version of the popular MAG bestseller, providing significantly improved light output, battery upgrade and even more functionality.

MINI MAG PRO replaces MINI MAG (03.5403) and is upgraded with a stepless dimmer function in the range of 10 % to 100 %. Compared to the previous MINI MAG the lumen output is higher and protection class has been upgraded to IP54, making the rechargeable inspection lamp more resistant to dust and water.

A battery indicator has been added on front of the re-designed hand lamp.

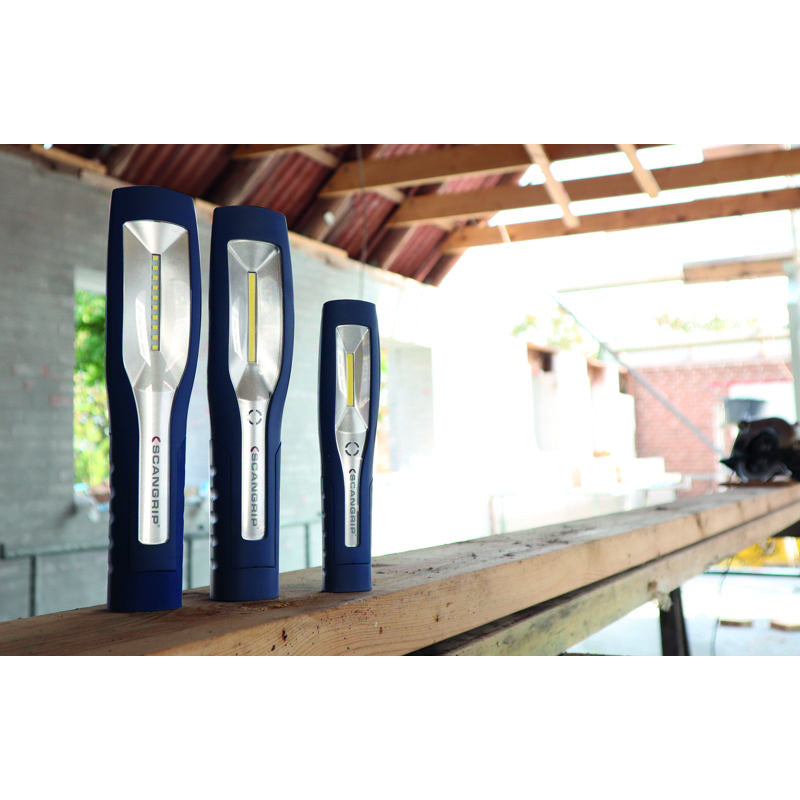

The MINI MAG comprises extremely powerful, rechargeable LED work lights and flashlights in one containing the latest, high performance LED technology.

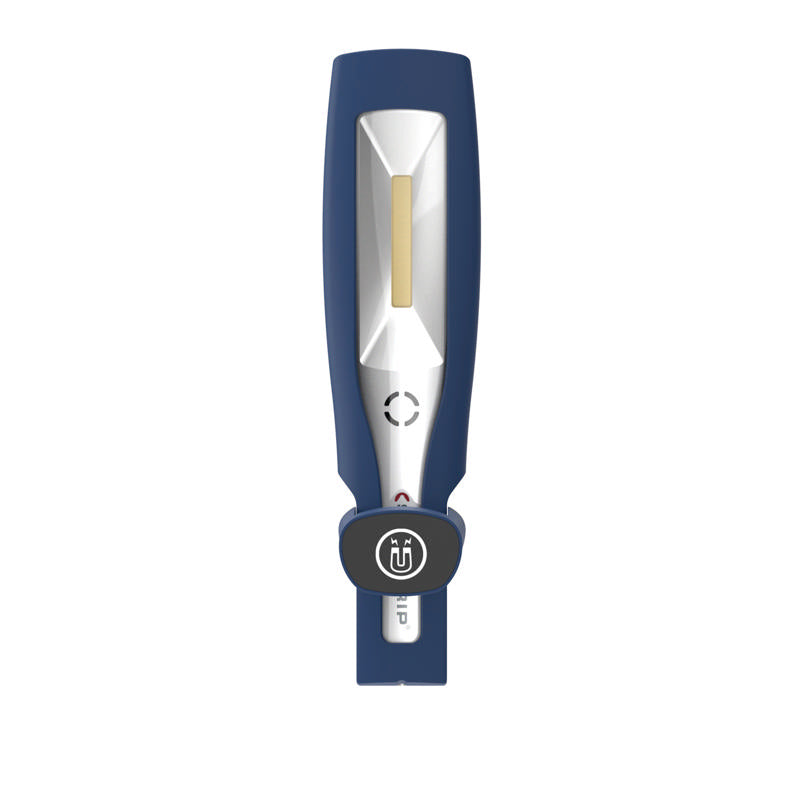

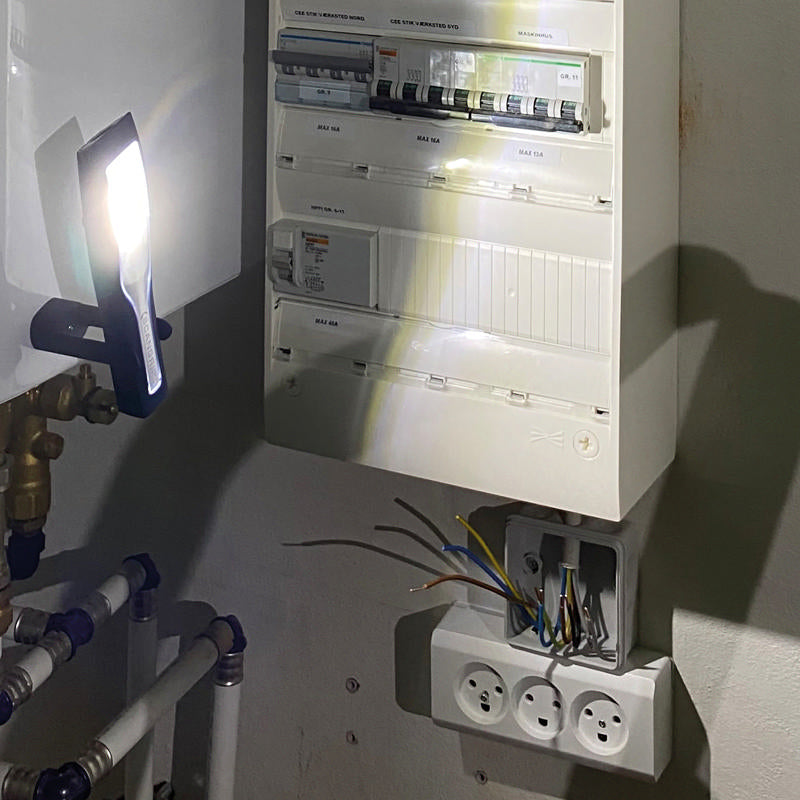

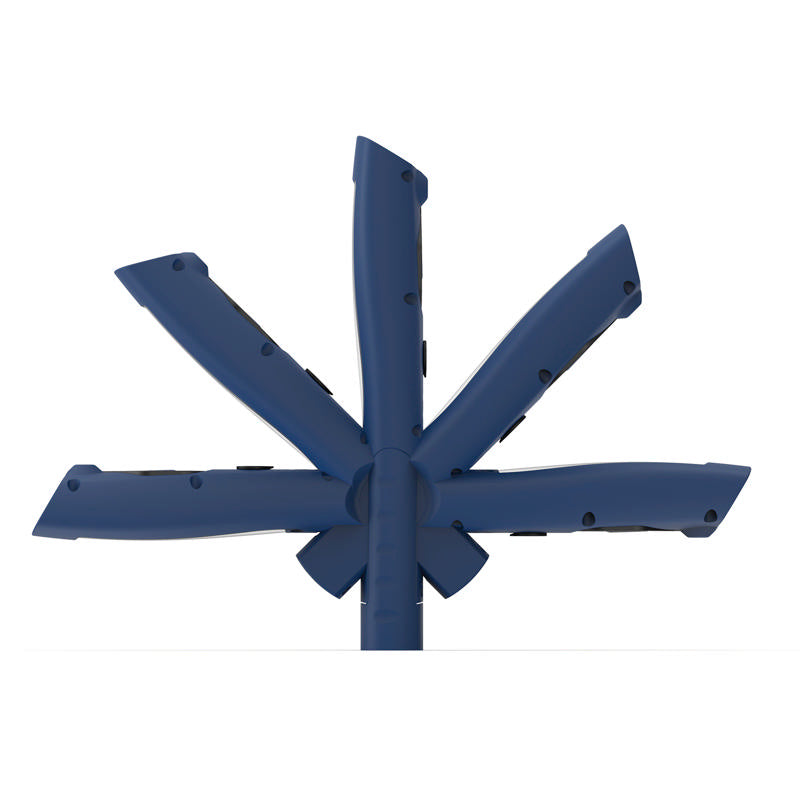

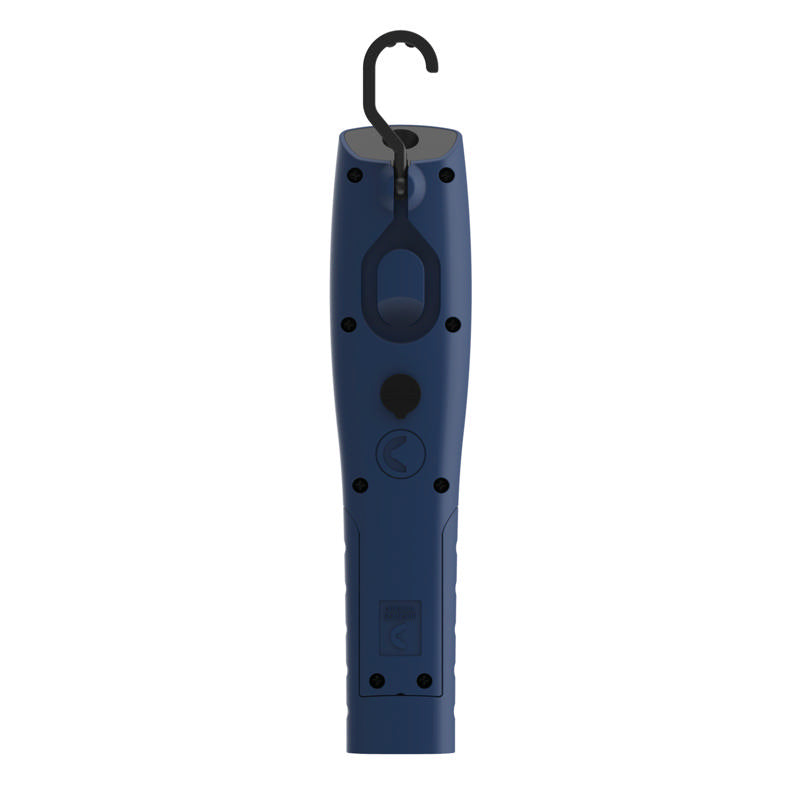

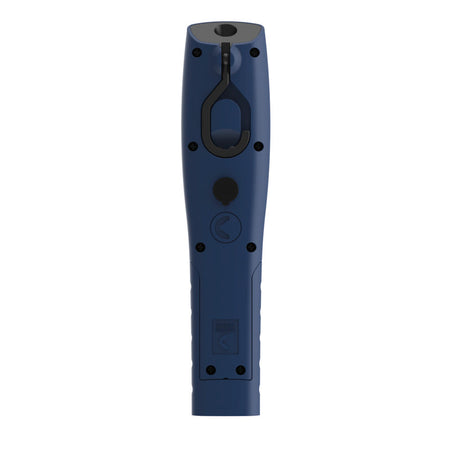

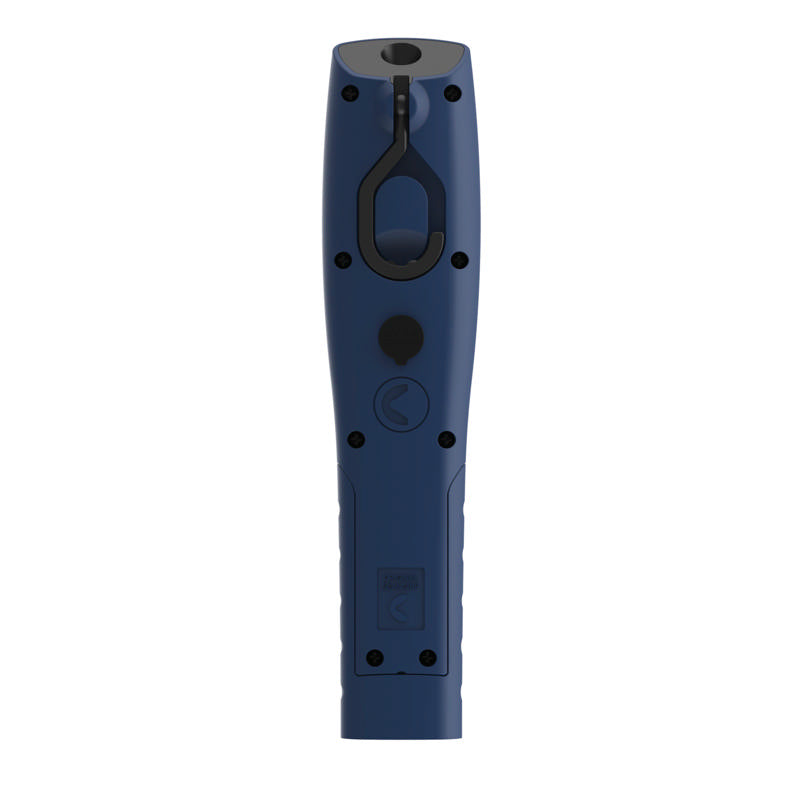

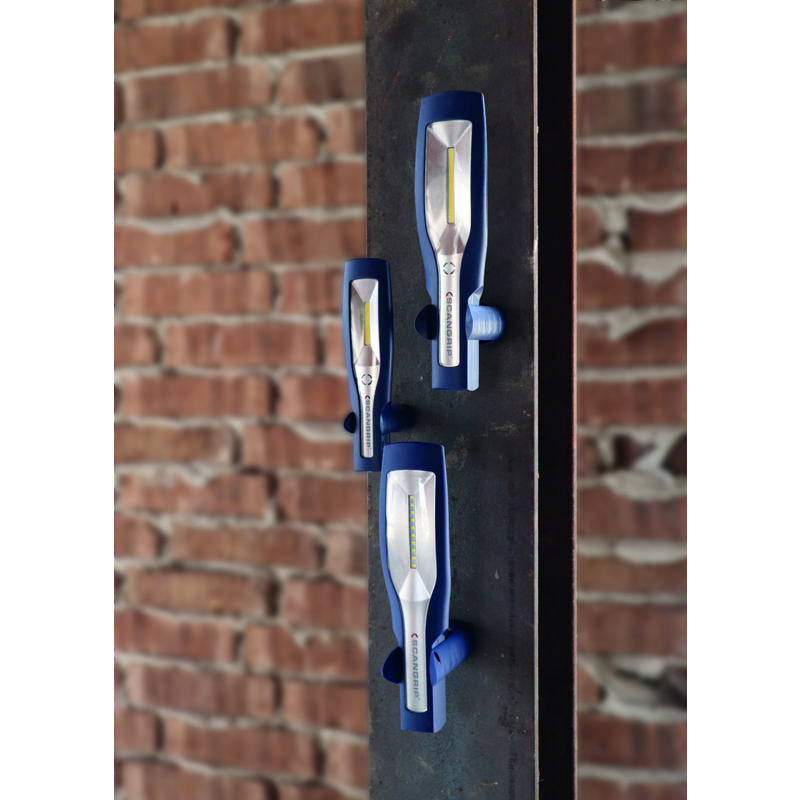

The new and modern design of the MINI MAG provides an ergonomic and user-friendly grip. Place anywhere you want with the strong built-in magnetic holder and the retractable suspension hook. The lamp head is flexible and tilts up to 180 degrees.

Why choose MINI MAG PRO?

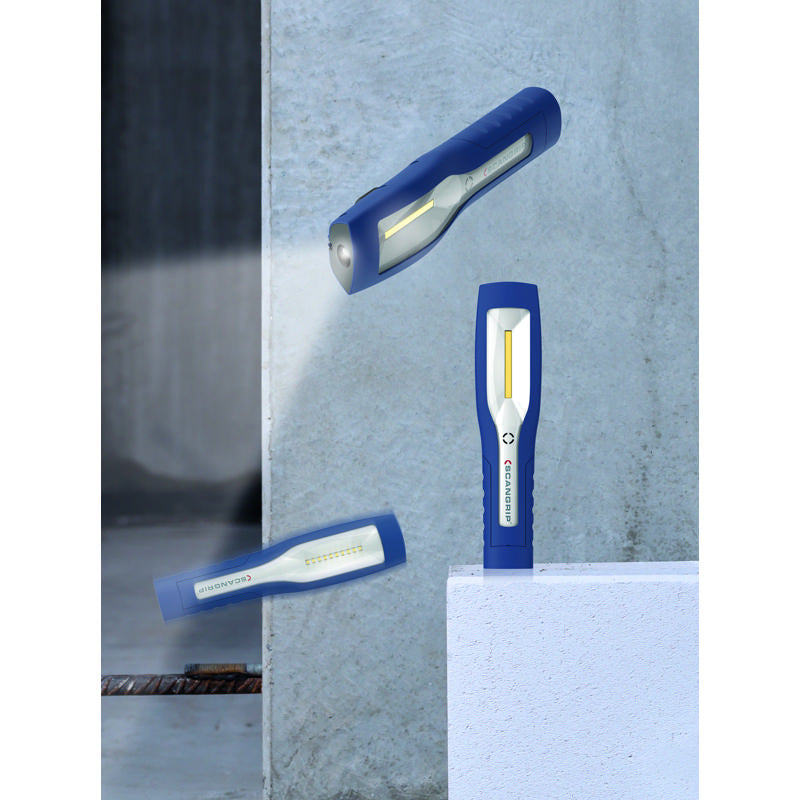

  • Handheld led lamp and flashlight in one for an all-purpose use
  • Stepless dimmer function from 10 % to 100 %
  • Dust- and water resistant (IP54)
  • Provides an ergonomic and user-friendly grip with the new and modern design
  • Up to 20 hours operating time, allowing for all-day use

Details

Product Number
03.5692
EAN number
5708997356920
Product types
Hand Lamp
Net Weight (kg)
0.16
Length (mm)
200.00
Width (mm)
40.00
Height (mm)
28.00
In the box
Lamp, charger cable, manual
Gross weight, packaging (kg)
0.22
Length, packaging (mm)
210.00
Width, packaging (mm)
48.00
Height, packaging (mm)
43.00
Sales display included
Yes
Qty in outer box
48.00
US versioned dimensions (in)
7.95 x 1.57 x 1.10in
US versioned net weight (lb)
0.346lb

Main Light

Luminous Flux, Max (Lumen)
200
Luminous Flux, Min (Lumen)
20
Illuminance, Max (Lux@0,5m)
350
Illuminance, Min (Lux@0,5m)
35
Light Source
COB LED
LED performance (lm/w)
165
CCT (Kelvin)
6000
CRI
>80
Adjustable Light Output
Stepless dimmer
Beam Angle Main
120
Beam Distance (Meter)
35

Electrical

Power source
Rechargeable Battery
Battery type
Li-ion
Battery capacity (mAh)
1200
Battery voltage (V)
3.70
Cable
1.0m / Black standard cable / USB to mini DC
Charging voltage DC (V)
5.00
Charging current (A)
1.00
Max Power Consumption (W)
2.50
US versioned cable (in)
39.37in USB
Charger included
Yes

Operation

Operating time with min. lumen (hours)
20.00
Ingress protection
IP54
Operating temperature
-10 to +40 ̊C
Impact resistance (meter)
1.00
US versioned operating temperature (°F)
14°F to 104°F
US versioned Impact resistance (in)
39.37in
Operating time with max. lumen (hours)
2.00

Secondary Light

Luminous Flux, Max (Lumen)
80
Illuminance, Max (Lux)
700
Beam Angle (°)
25
CRI
>80
CCT
5000
Light Source Secondary
SMD LED

Product Line

Product line
WORK LIGHTS
Product family
MAG
