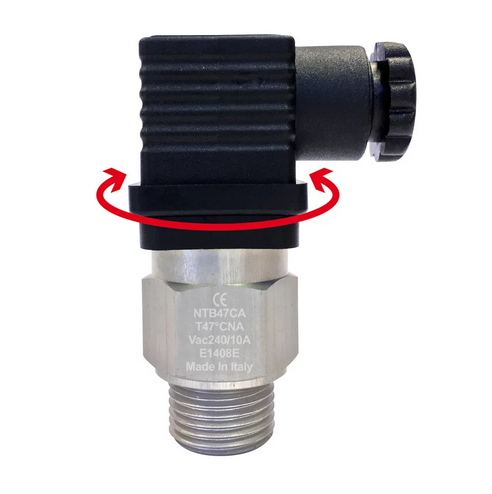

NTB – Temperature switches with fixed set-point and 360° rotating head

Description

Industry Superstore proudly presents the NTB series temperature switches, designed for robust and reliable thermal management in industrial applications. These switches offer fixed set-points and a 360° rotating head, providing unparalleled flexibility and ease of installation in various settings.

Key Features:

• Switch Rating: Handles up to 10 A at 240 Vac, 0.5 A at 24 Vdc, and 10 A at 12 Vdc.
• Electrical Connection: Equipped with a DIN 43650 – PG09 swivel plug for secure and convenient wiring.
• Wide Range of Working Temperatures: Available in preset temperatures of 25°C, 31°C, 38°C, 47°C, 60°C, 70°C, 80°C, 90°C, 100°C, and 105°C, ensuring precise control for various applications.
• High Accuracy and Reliability: Boasts an accuracy of ±5°C with a maximum differential DT of 16°C, operating efficiently in environments ranging from -20°C to +120°C.
• Durable Construction: Built with anodized aluminum and capable of withstanding pressures up to 200 bar.
• Versatile Thread Connections: Options include G3/8″, G1/2″, and M22 x 1.5 mm, ensuring compatibility with diverse systems.
• Protection: Rated IP65 for excellent protection against dust and water ingress.
• Compact Dimensions: With a body diameter of 27 mm and height options of 74 mm (NTB) or 84 mm (NTBM), these switches are compact yet powerful.

Additional Options:

• Available with an optional magnet brass body for enhanced functionality.

Whether you need precise temperature control in harsh industrial environments or reliable performance under high pressure, the NTB series temperature switches are engineered to meet your demands. Download the PDF for more details or request a quote today!

Downloads

Technical Datasheet
