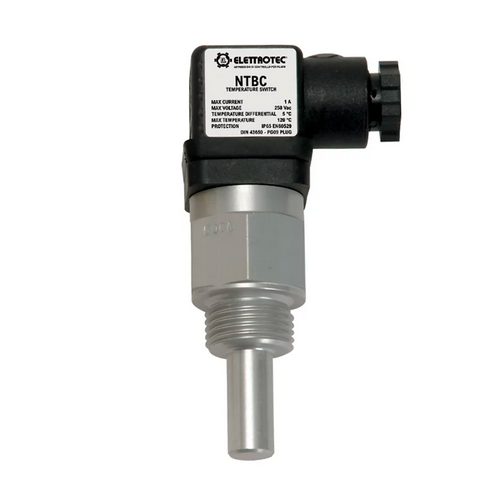

NTBC – Temperature switches with fixed set-point and din-plug

Description

The NTBC Temperature Switches are your reliable solution for precise temperature control in demanding environments. Designed with a fixed set-point, these thermostats ensure consistent performance and are ideal for applications where accuracy is crucial.

Key Features:

• Switch Rating: Capable of handling up to 1 A at 220 Vac, ensuring robust performance.
• Electrical Connection: Equipped with a DIN 43650 – PG09 connector for secure and easy installation.
• Working Temperature Range: Available in multiple set-points from 30°C to 105°C, catering to a wide range of operational needs.
• Accuracy: Maintains a high precision with an accuracy of ± 5°C.
• Max. Differential DT: Ensures minimal temperature variation with a maximum differential of 5°C.
• Environment Temperature: Operates efficiently in extreme conditions from -20°C to +120°C.
• Max. Pressure: Withstands pressures up to 80 bar, suitable for high-pressure environments.
• Contact Options: Available in NO (Normally Open) and NC (Normally Closed) configurations.
• Durable Construction: Made from anodized aluminium, with an optional brass body for enhanced durability.
• Thread Connection: Versatile thread options including G3/8″, G1/2″, and M22 x 1.5 mm for easy integration.
• Protection: IP65 rating ensures protection against dust and water, making it suitable for harsh environments.
• Compact Dimensions: Featuring a compact body (27 AF) and a height of 97 mm for space-saving installation.

Choose NTBC Temperature Switches for reliability, precision, and durability in your temperature control applications.
