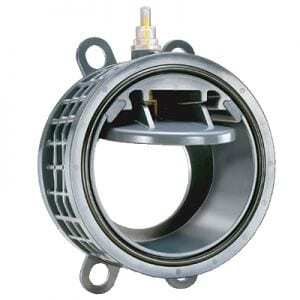

PW Series Wafer Check Valves

Description

The Chemline PW Series Wafer Check Valve offers high end features at reasonable cost. This wafer check does not require a separate spacer or flange gaskets. The large orifice and full flow design means low pressure drop. Spring assisted disc closure is standard as well as an optical indication of disc open/close position. A selection of body materials and elastomers allow for a wide range of applications.

✓ NSF 61 Approved Materials PVC/EPDM and PVDF/EPDM valves are made of NSF approved materials

✓ Large Flow Capacity Low Pressure Drop

✓ High Pressure Ratings 150 PSI rated up to 10”
