Type 33 Multi-Port Industrial Ball Valves
Got questions?
Feel free to get in touch
Ask Tony
Description

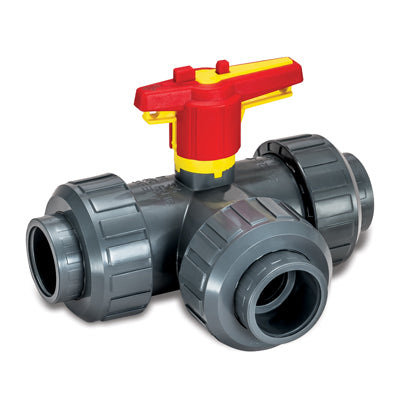

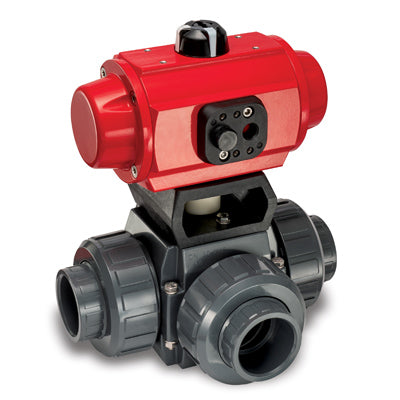

The Chemline Type 33 Multiport is a full featured ball valve with a horizontal third port. It eliminates the need for two standard ball valves and a tee in many cases. The standard T-Port offers flow diversion as well as unobstructed straight through flow. For electric or pneumatic actuation, the optional L-Port ball diverts flow with 90 degree operation2.
1 Butt ends in PVDF or ECTFE (Halar®) and butt or socket PP ends fuse to Chemline metric piping systems
2 For operation with actuators, the L Port 90° operating ball is recommended
✓ Fully Supported Ball Four PTFE seats for smooth reliable operation ✓ Safety Lock Handle Locks valve in each 90o position Lockable with a padlock Handle turns only when trigger is squeezed

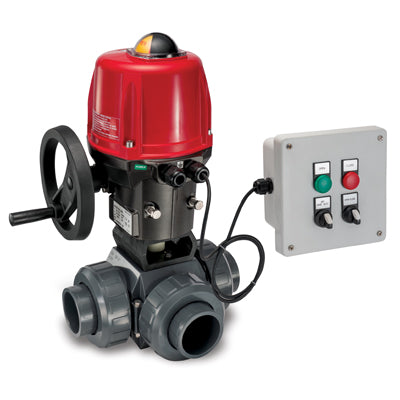

✓ Easy to Actuate2 Mounting kits are available
✓ 230 psi Working Pressure
✓ Fully Blocking Union nuts on closed ports may be safely dissembled under pressure
Downloads
 |
Technical Datasheet |
