£0.00 In Stock Sold out
Powerful UV-hand lamp for leak detection

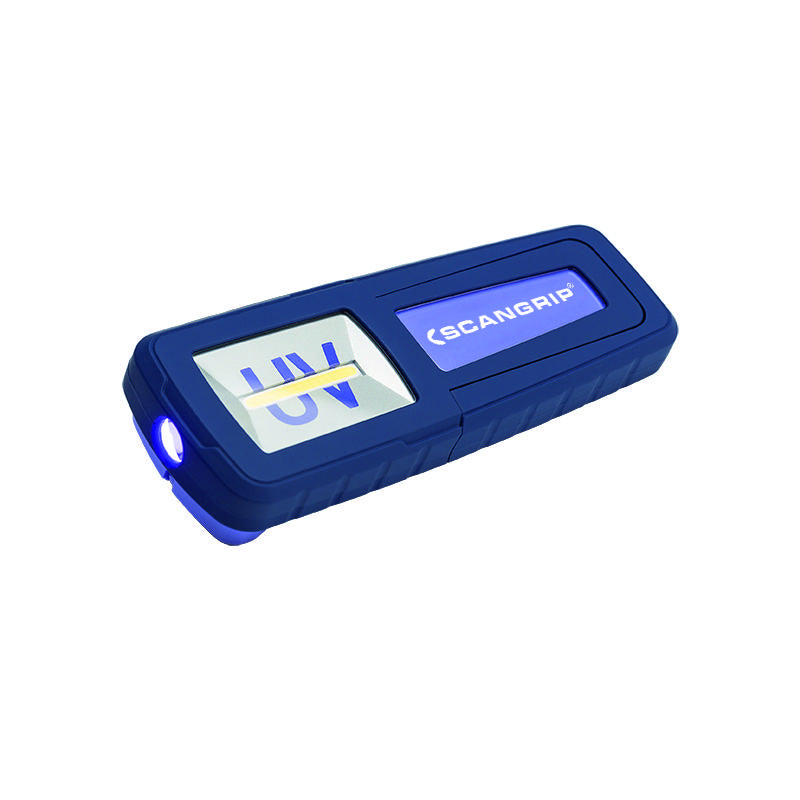

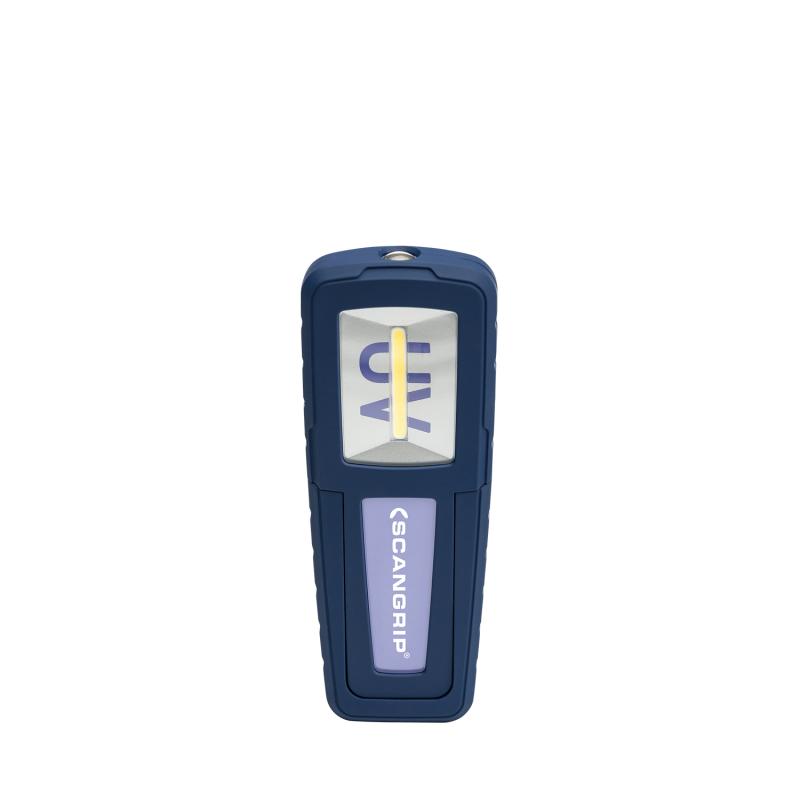

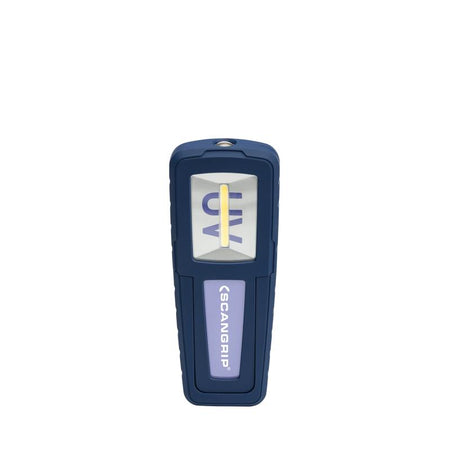

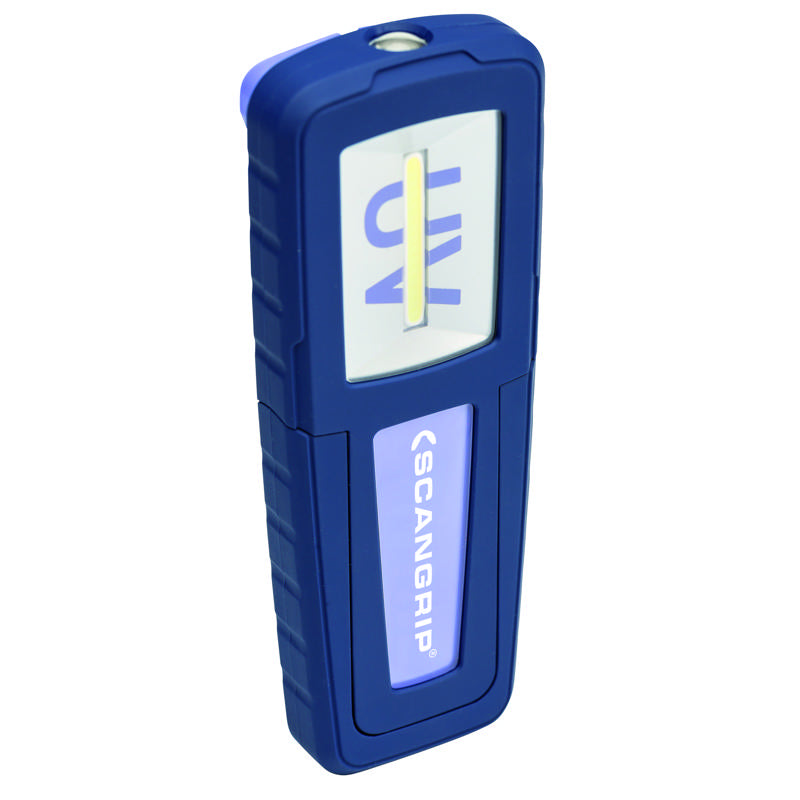

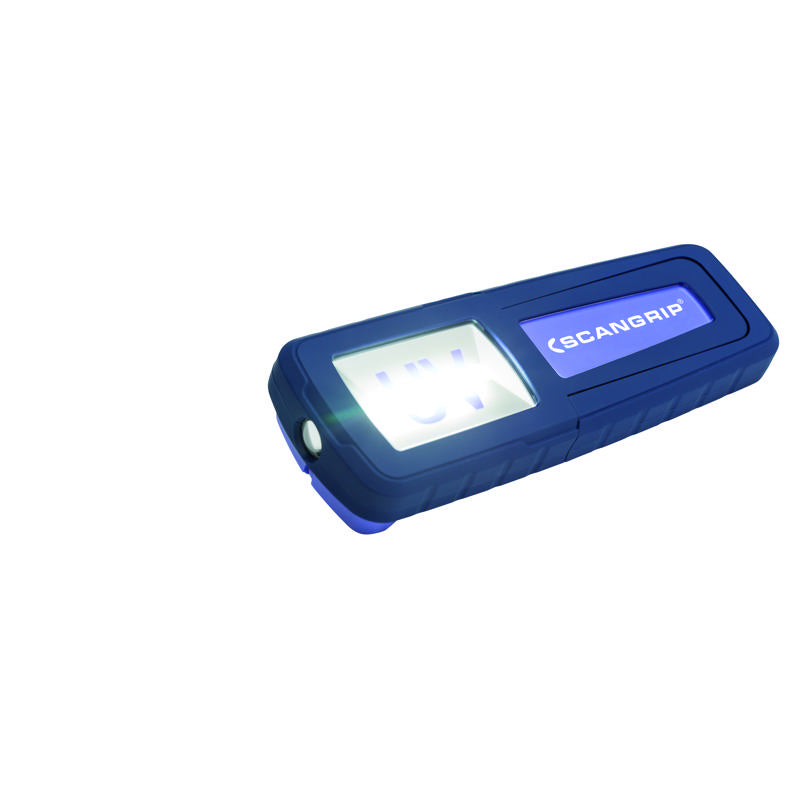

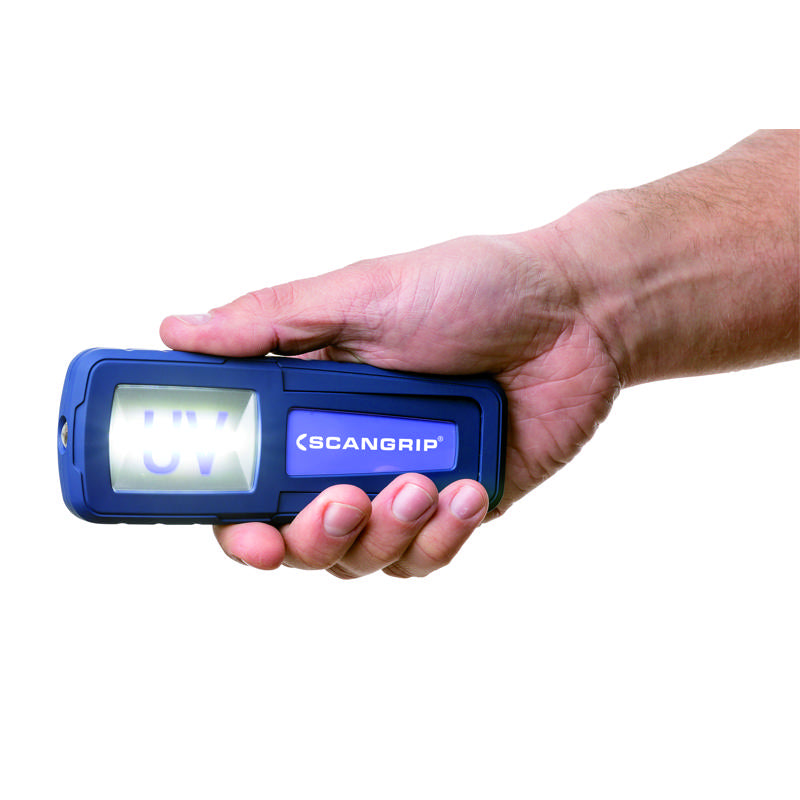

UV-FORM is a rechargeable LED hand lamp with powerful 1.5W UV-light on the top.

The rechargeable inspection lamp is fitted with the new COB LED strip light providing a unique powerful and completely uniform illumination. Basically, you get a universal indispensable handheld LED light and UV detection in one, and at the same time it replaces special UV detection lights.

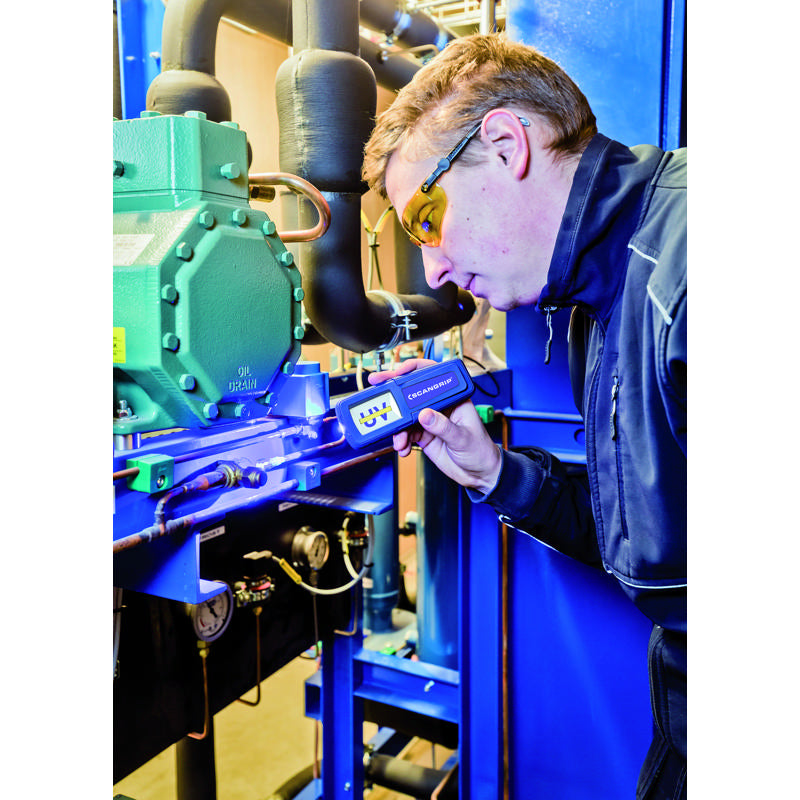

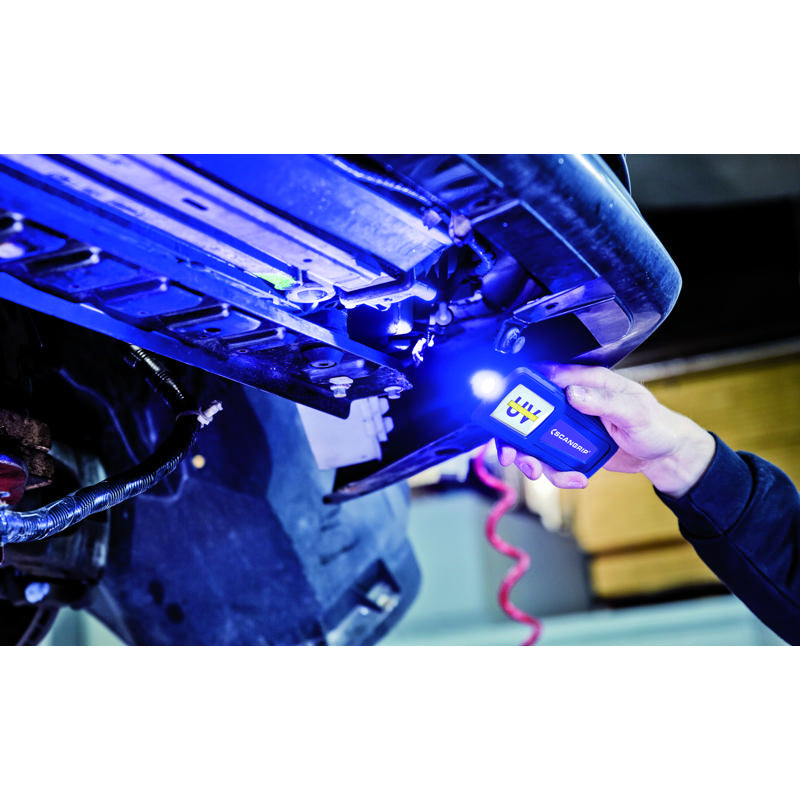

The ultraviolet light is intended for leak detection in air-conditioning systems by means of trace elements. Also useful for leak detection of larger, complex refrigeration/freezing appliances, process-cooling systems, heat pump systems etc.

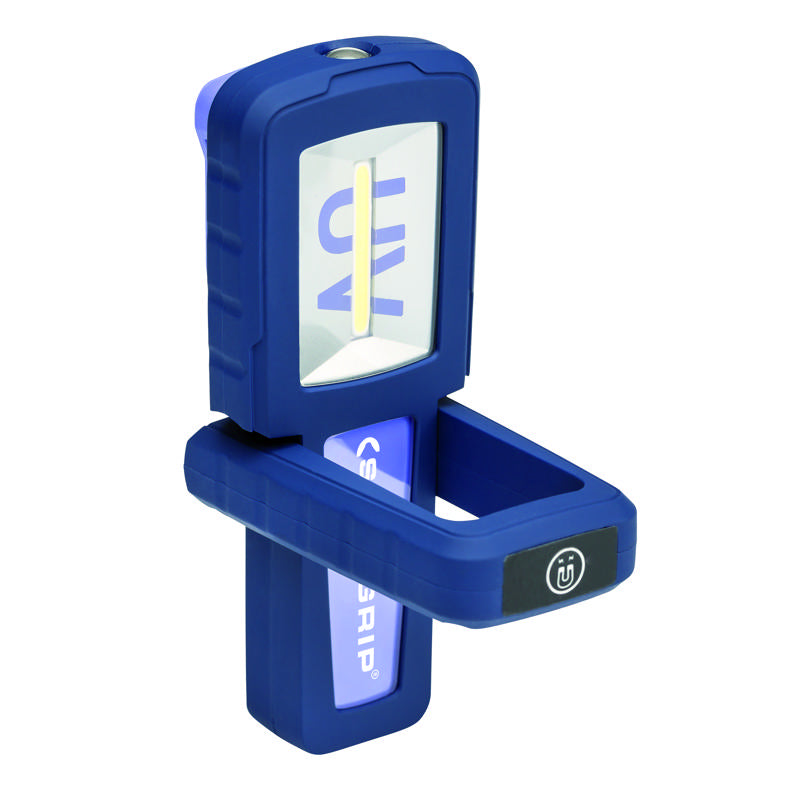

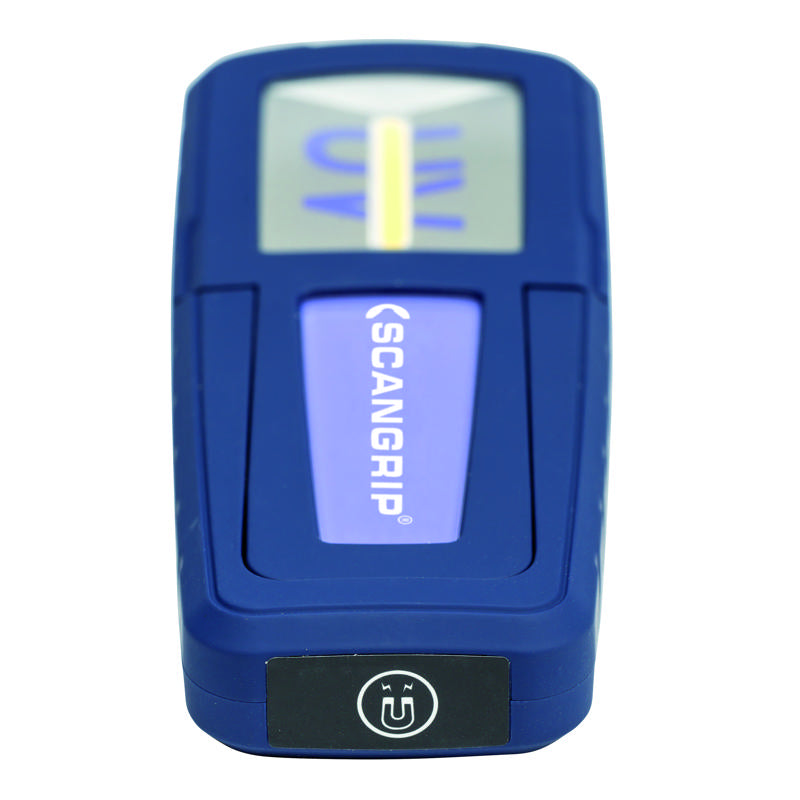

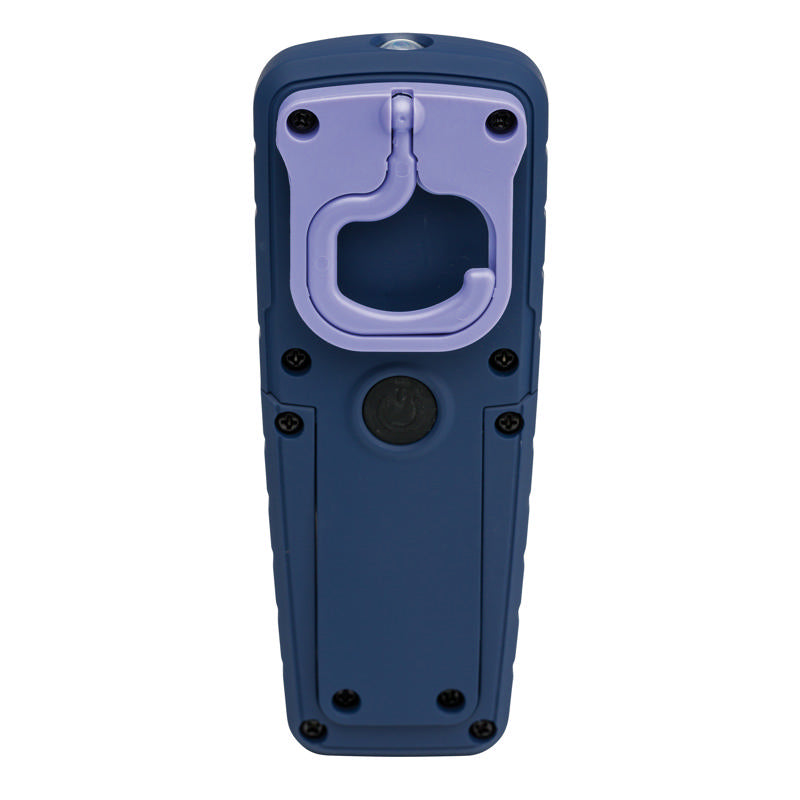

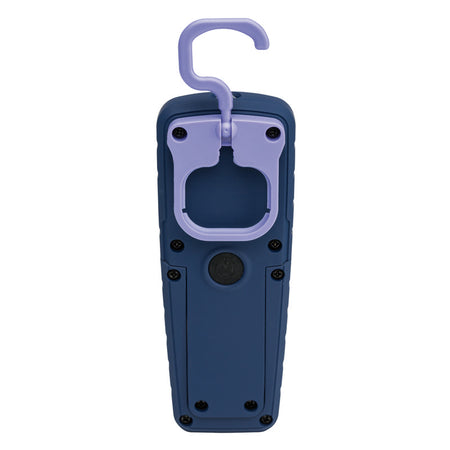

UV-FORM's flexible lamp head tilts up to 180 degrees. UV-FORM is supplied with a strong built-in magnet for easy positioning in the workspace and a turnable sturdy hook designed to fit the work belt.

Why choose UV-FORM?
  • Universal work light and UV detection in one
  • Perfect for leak detection

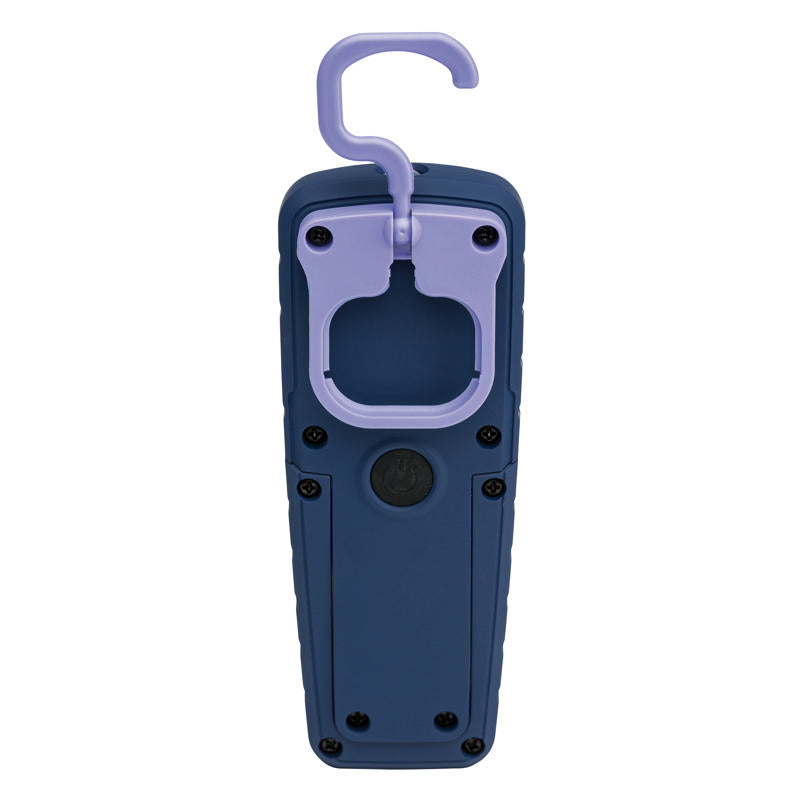

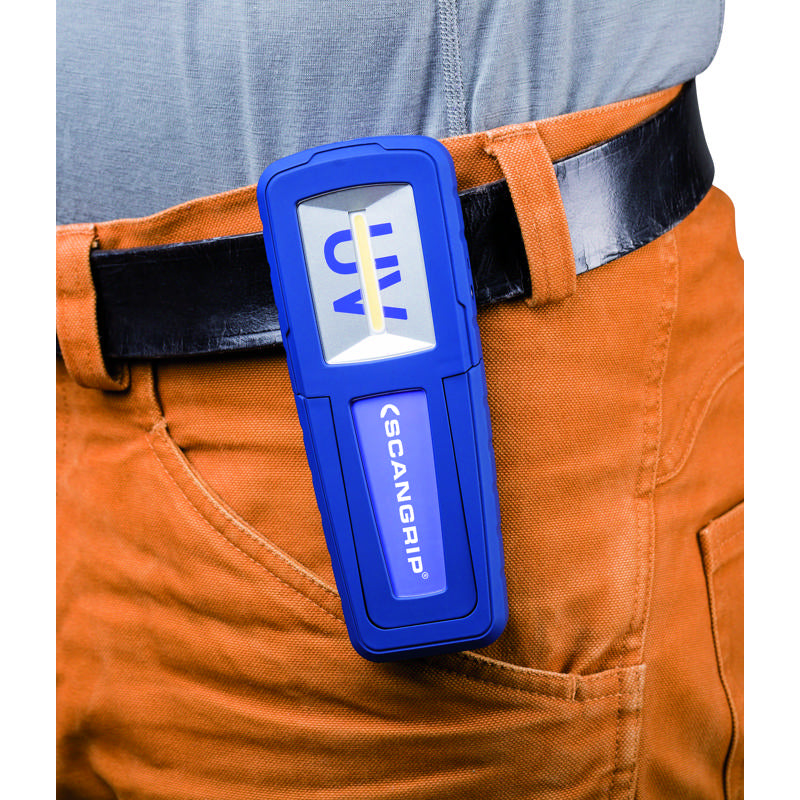

  • Place the lamp anywhere you want with the built-in magnet or carry the hand lamp in your work belt with the sturdy and turnable hook

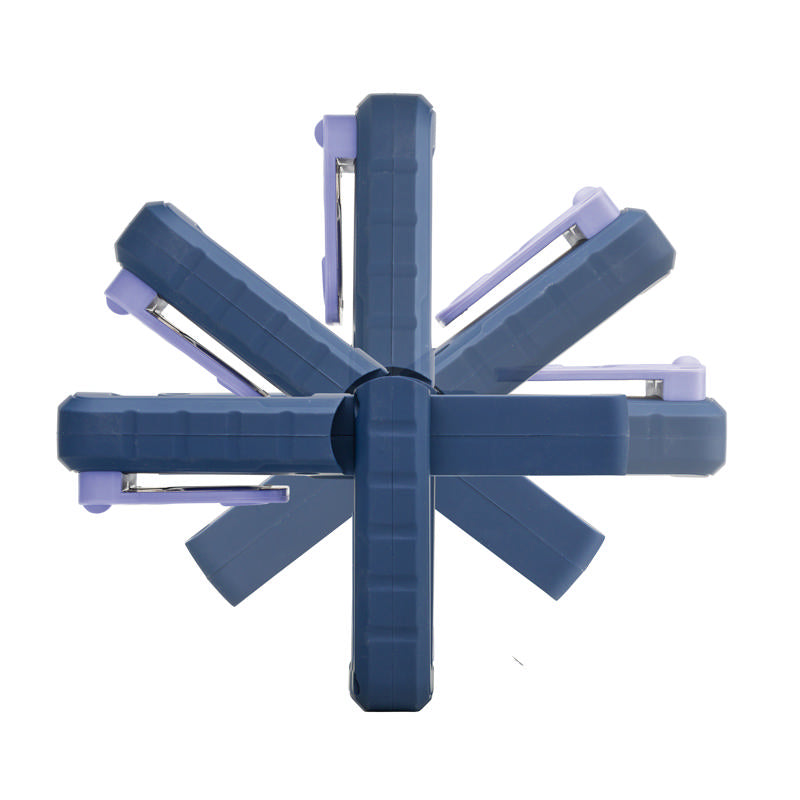

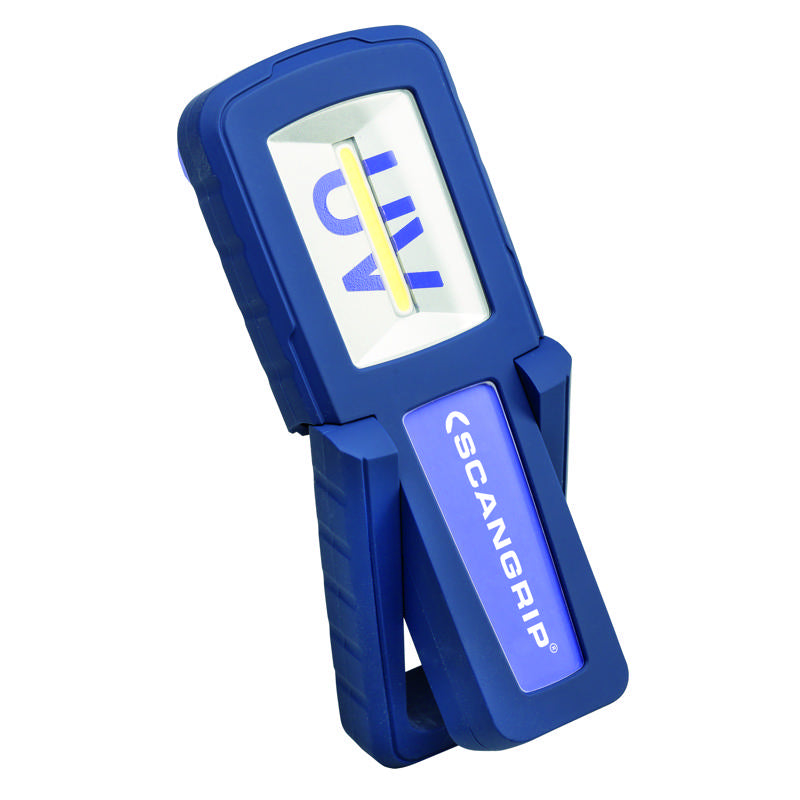

  • A 180° tiltable lamp head for maximum flexibility

// Please note, only item no. 03.5408 is delivered with a European charger. Other versions (03.5408xx) are delivered excl. charger.

// The design of UV-FORM is unique and covered by EU design patent RCD No 2373282.

Product Number 03.5408 EAN number 5708997354087 Product types Hand Lamp Net Weight (kg) 0.16 Length (mm) 155.00 Width (mm) 60.00 Height (mm) 32.00 Packaging 4-colour box w/hanger In the box Lamp, charger cable, manual Gross weight, packaging (kg) 0.27 Length, packaging (mm) 160.00 Width, packaging (mm) 62.00 Height, packaging (mm) 39.00 Sales display included Yes Qty in outer box 24.00
Luminous Flux, Max (Lumen) 250 Luminous Flux, Min (Lumen) 215 Illuminance, Max (Lux@0,5m) 400 Illuminance, Min (Lux@0,5m) 200 Illuminance Distance (Meter) 0.50 Light Source COB LED LED performance (lm/w) 128 CCT (Kelvin) 6000 CRI Ra >80 Adjustable Light Output 2 steps
Power source Rechargeable Battery Battery type Li-ion Battery capacity (mAh) 1600 Battery voltage (V) 3.70 Cable 1 m USB to mini DC Charging voltage DC (V) 5.00 Charging current (A) 1.00 Charging input voltage (V) 100-240V AC 50/60Hz Max Power Consumption (W) 3.00 Charger included No
Operating time with min. lumen (hours) 5.00 Charging time (hours) 3.00 Ingress protection IP20 Operating temperature -10 °C to +40 °C Impact resistance (meter) 0.00 Operating time with max. lumen (hours) 2.50
Illuminance, Max (Lux) 0 CRI Ra >80 CCT 0 Light Source Secondary High Power UV LED Illuminance Distance (Meter) 0.50
Product line WORK LIGHTS Product family FORM
