UV-GUN

Out of stock
SKU: 3.5803
Regular price £0.00

Got questions?

Feel free to get in touch

Description

Rechargeable and high efficient LED work light for UV curing of larger areas

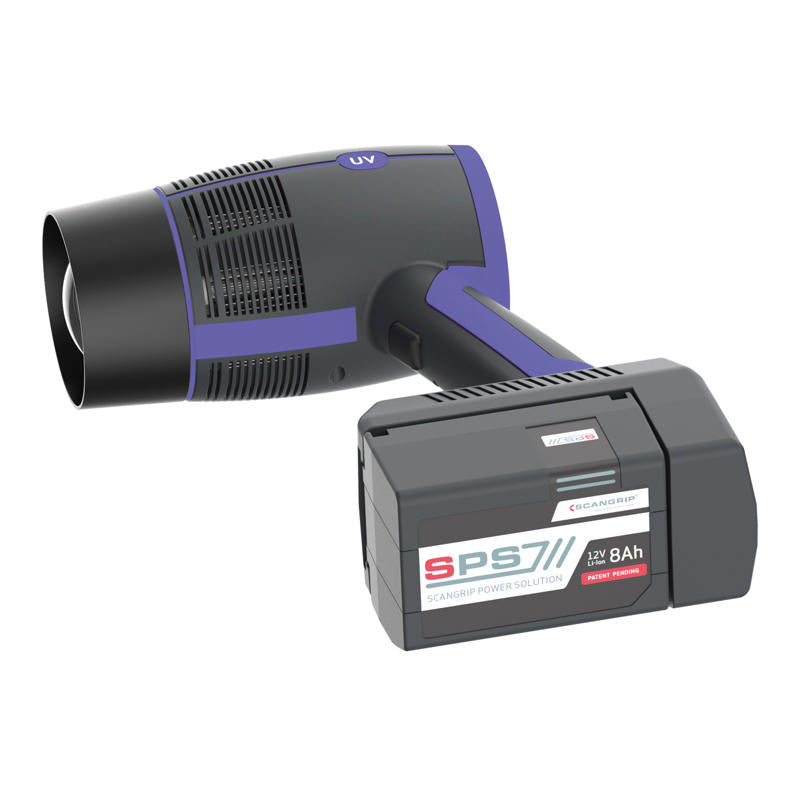

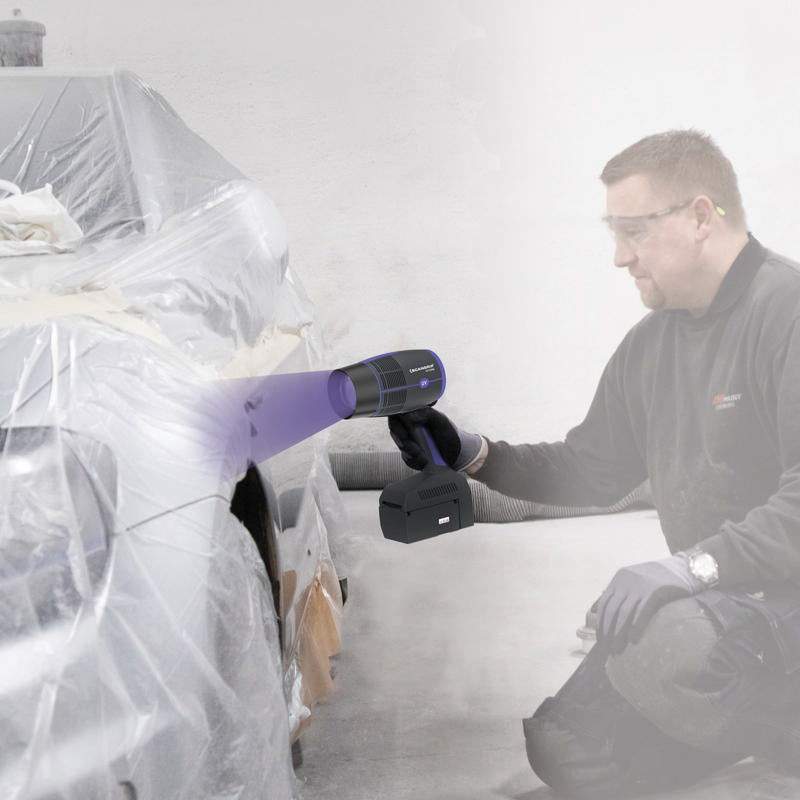

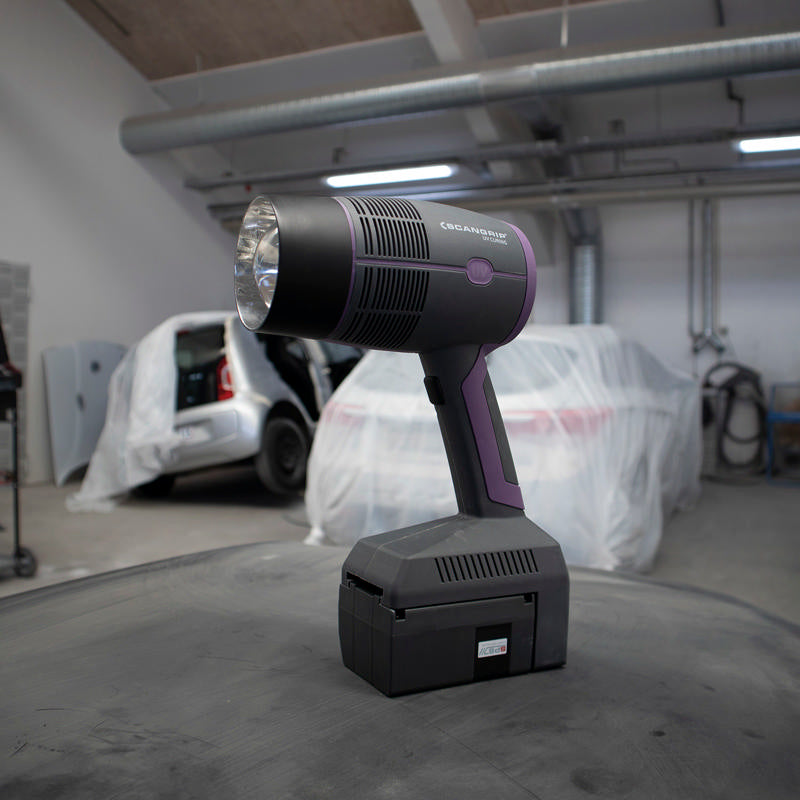

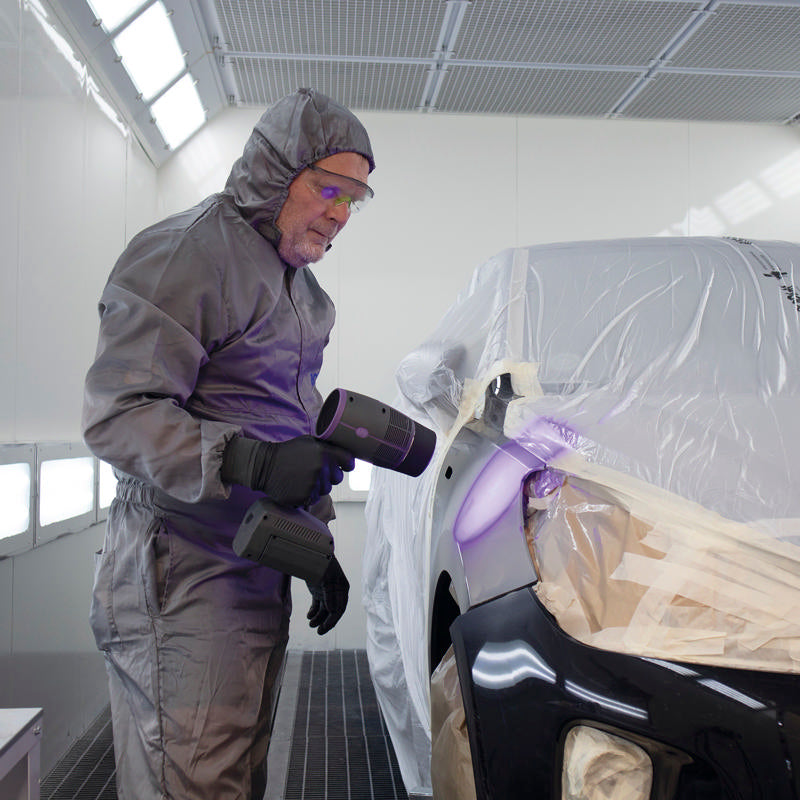

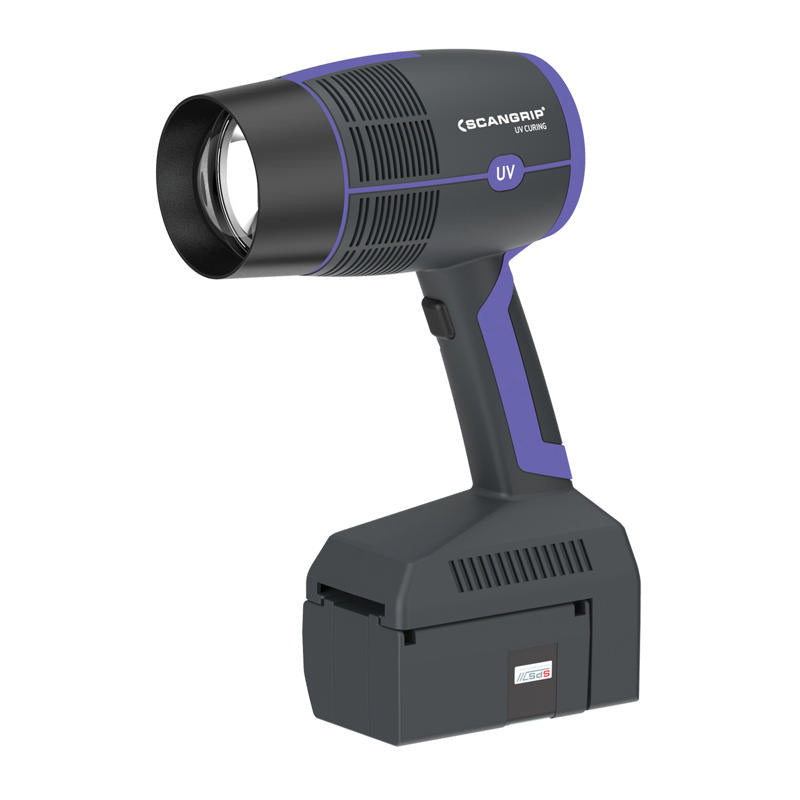

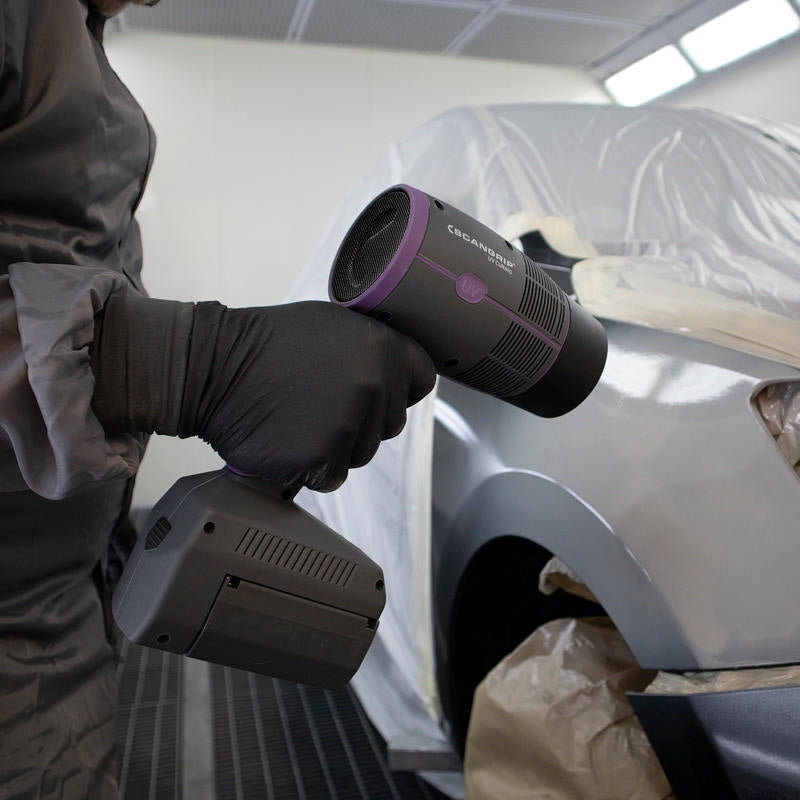

UV-GUN is an extremely powerful LED UV curing lamp for highly efficient and very fast curing of large paint repair areas. It provides a long operation time and is rechargeable with exchangeable battery.

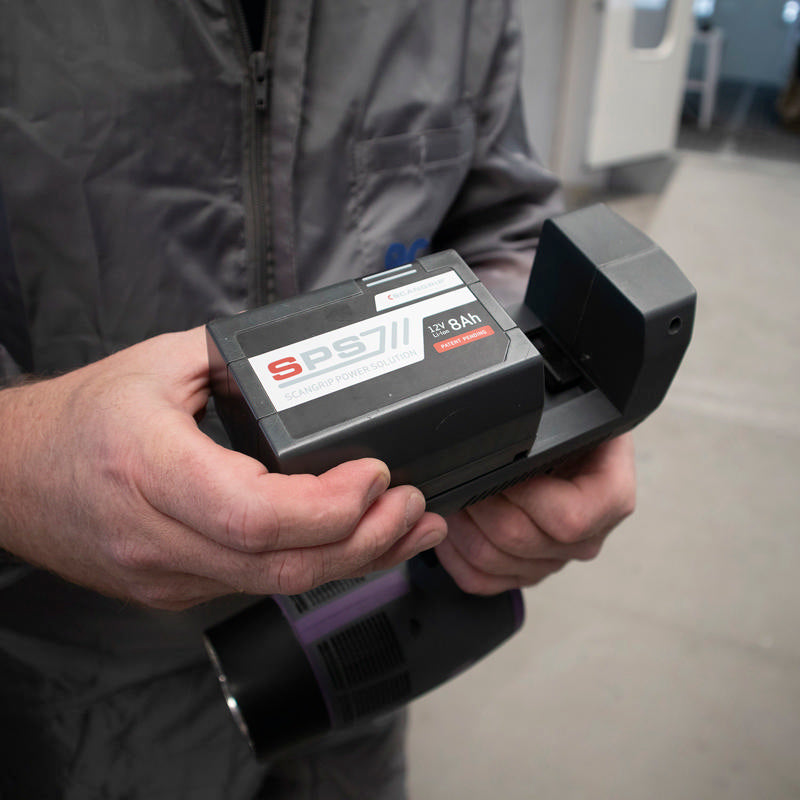

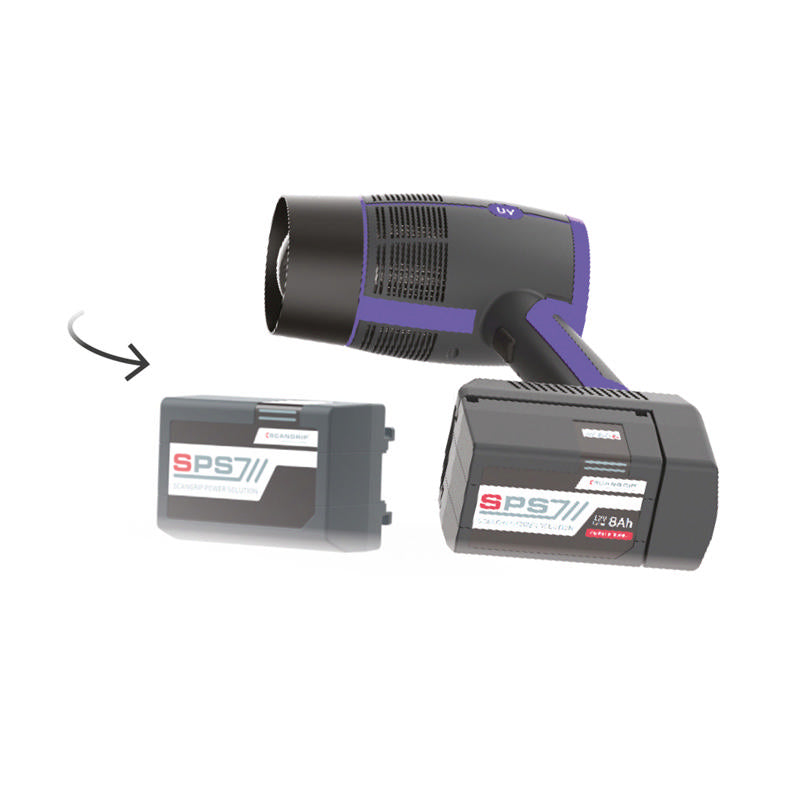

SCANGRIP has taken advantage of new, high performance battery technologies and invented an innovative concept of flexible and reliable power supply. Easily you can insert a new, fully charged battery and continue the work while another battery is charging.

Featuring high-quality components and active cooling, UV-GUN has a long lifetime and keeps a high performance level throughout the daily operations. No heat is produced on the panel or the paint during the curing, allowing use on of plastic parts or any heat sensitive material.

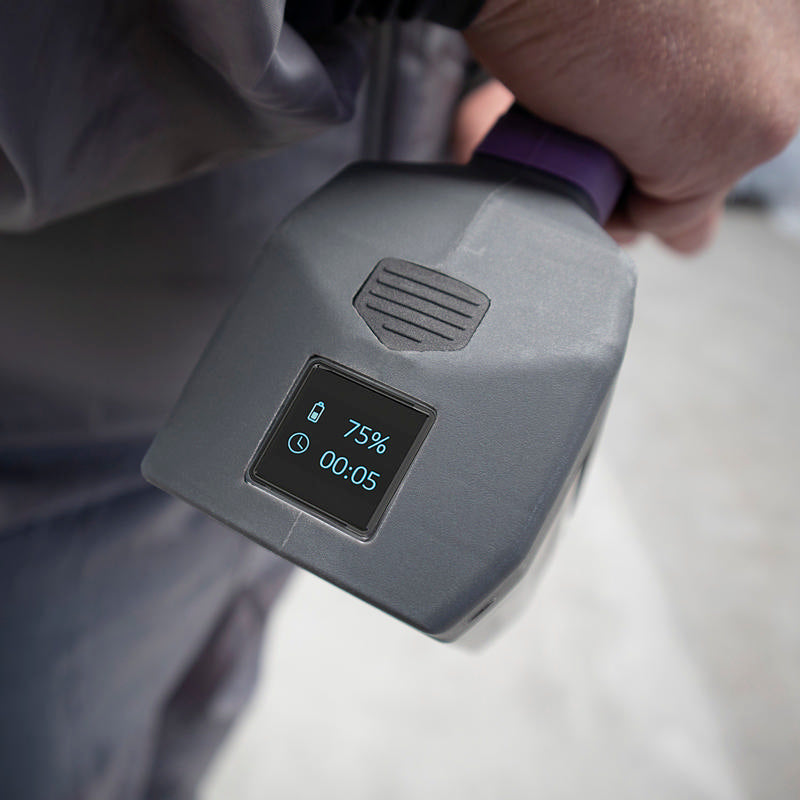

UV-GUN has been upgraded with an LCD display enabling you to see the remaining battery level and ongoing curing time. With this feature, you will know the exact curing time of each operation and see when it is time to exchange the battery.

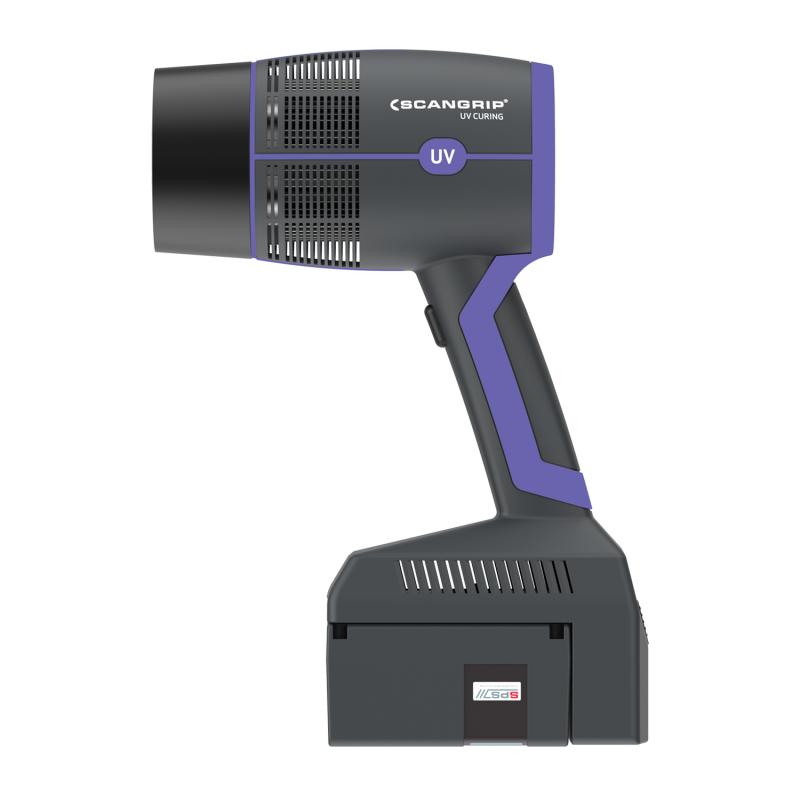

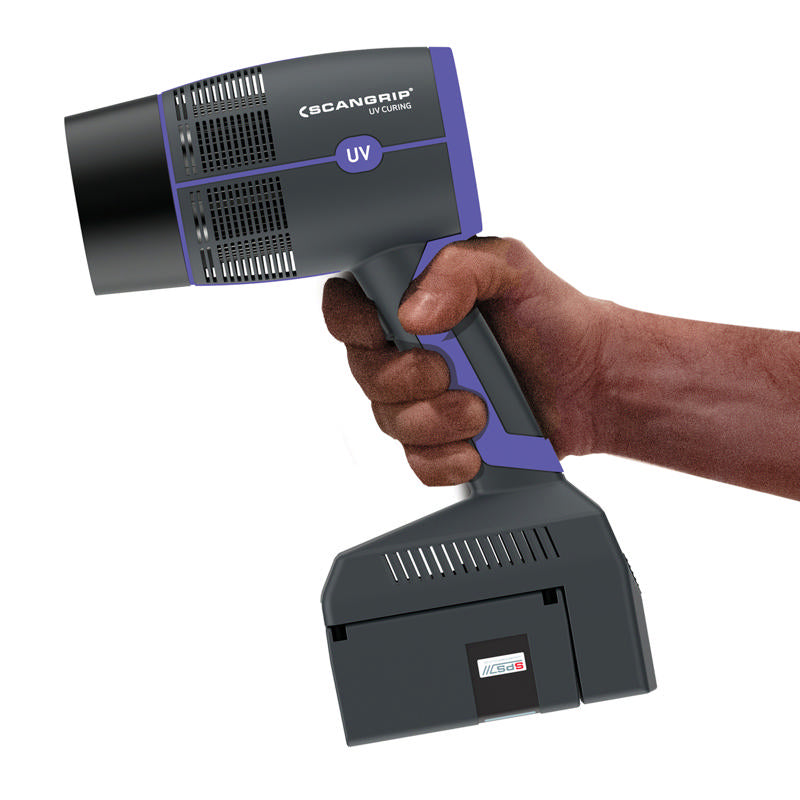

Equipped with an ergonomic design for ultimate comfortability and a firm grip, UV-GUN is the ideal handheld UV light for curing. UV-GUN is supplied with a solvent resistant glass lens.

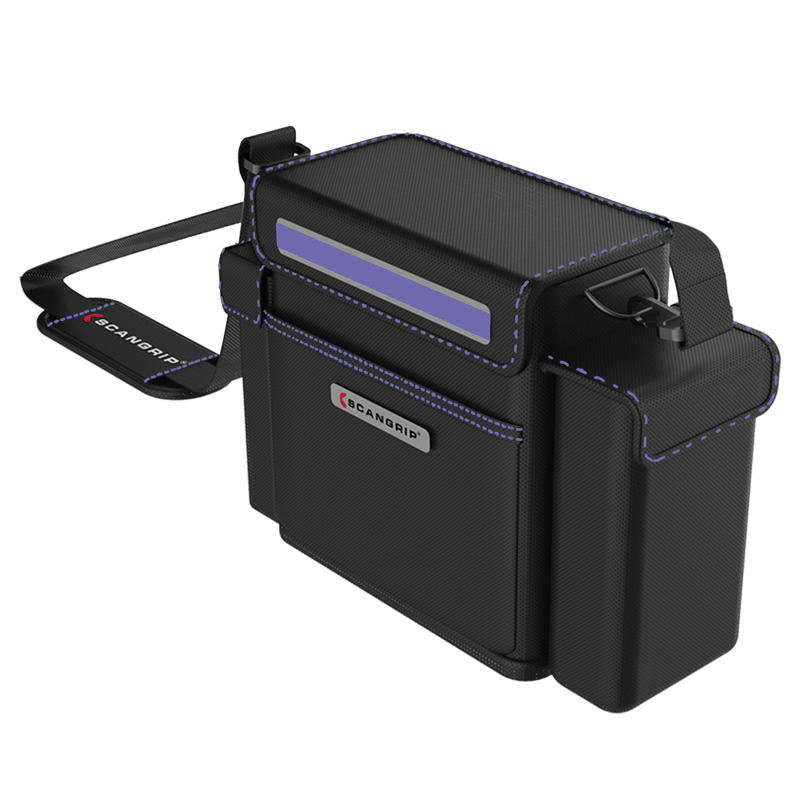

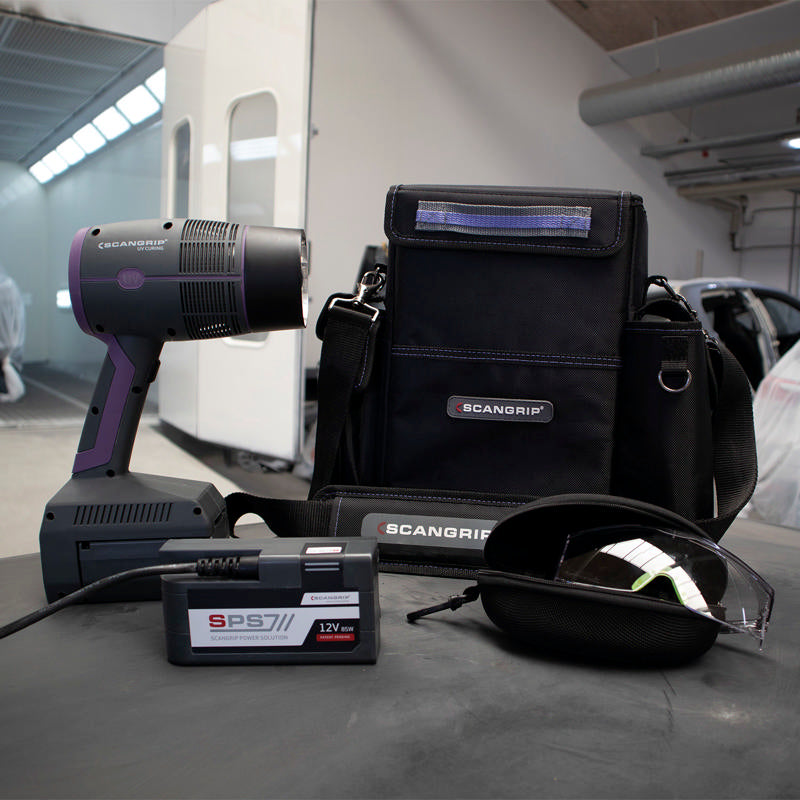

Delivered in a practical nylon bag including exchangeable SPS battery, SPS charger and UV protective glasses.

Protective UV Curing Eyewear

Learn more about our safety gear for using SCANGRIP UV-CURING products.

Compatibility UV Cured Products

SCANGRIP specialized LED work lights for UV CURING has been tested and proven successfully on leading brands of UV-cured products. Learn more here >>

Why Choose The UV-GUN?
  • Fast curing process (only 1 min)
  • No heat is produced on the panel or the paint during the curing, allowing use on plastic parts and other heat sensitive materials
  • See remaining battery level and ongoing curing time with the upgraded LCD display​
  • Solvent resistant glass lens
  • Featuring high-quality components and active cooling UV-GUN has a long lifetime and keeps a high performance level throughout the day

// The design of UV-GUN is unique and covered by EU design patent.

Details

Product Number
03.5803
EAN number
5708997358030
Product types
Hand Lamp
Net Weight (kg)
1.89
Length (mm)
96.00
Width (mm)
300.00
Height (mm)
215.00
Packaging
4-colour box
In the box
Lamp, SPS Battery 8Ah, SPS Charging System 50W, transport bag, protective glasses
Gross weight, packaging (kg)
3.90
Length, packaging (mm)
375.00
Width, packaging (mm)
340.00
Height, packaging (mm)
125.00
Sales display included
No
Qty in outer box
3.00

Main Light

Light Source
UV LED

Electrical

Power source
Scangrip Power Solution
Battery type
Li-ion
Battery capacity (mAh)
8000
Battery voltage (V)
11.10
Cable
5m / 2x0,75 mm2 H05RN-F
Charging voltage DC (V)
12.60
Charging current (A)
4.00
Charging input voltage (V)
100-240V AC 50/60Hz
Plug type
Type F (Schuko plug)
Max Power Consumption (W)
120.00
Charger included
Yes

Operation

Operating time with min. lumen (hours)
0.40
Charging time (hours)
2.00
Ingress protection
IP30
Impact protection
IK06
Operating temperature
-10 °C to +40 °C
Impact resistance (meter)
1.00

Product Line

Product line
UV CURING
