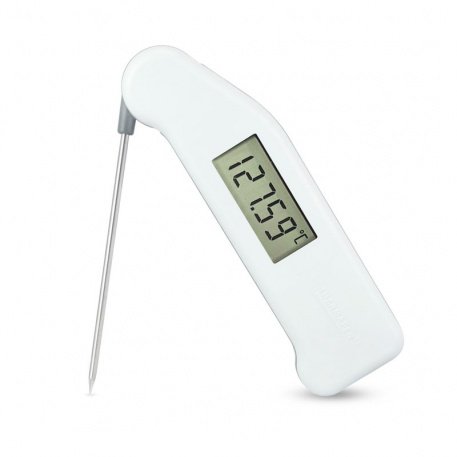

Reference Thermapen High Resolution, High Accuracy Thermometer
Got questions?
Feel free to get in touch
Ask Tony
Description
The Reference thermometers are precision PT100 instruments delivering high accuracy and come with a 5-point UKAS Certificate of Calibration. This certificate outlines deviations from standards at key checkpoints: -18, 0, 40, 70, and 100 °C. Special ranges can be certified upon arrangement with the ETI UKAS calibration laboratory. Designed for comparison checks of thermometer and probe calibration, these instruments operate within a temperature range of -199.99 to 199.99 °C, offering a resolution of 0.01 °C and system accuracy of ±0.03 °C (-49.99 to 149.99 °C) and ±0.1 °C (-150 to 200 °C). With a straightforward on/off push button, they include an open circuit 'Err' and low battery indication when applicable. The Reference Plus thermometer, featuring a max/min and hold function, enhances the Reference thermometer's capabilities. Equipped with a permanently attached, high-accuracy probe housing a 1/10th DIN PT100 sensor, measuring Ø3.3 x 130 mm, it comes with a one-meter PVC lead.
Technical Datasheet
| Range: | -69.9 to 199.9°C |
| Resolution: | 0.01°C |
| Accuracy: | ±0.05°C (-30 to 149.9°C) otherwise ±0.2°C |
| Battery: | 2 x 3 volt CR2032 lithium coin cell |
| Battery Life: | 1000 hours |
| Sensor Type: | PT100 |
| Display: | 12mm LCD |
| Dimensions: | 19 x 47 x 153mm |
| Weight: | 97 grams |
| Case Material: | ABS plastic with Biomaster Anti-bacterial Additive |
| Country of Manufacture: | United Kingdom |
| Guarantee: | Two Years |
| Measurement Scale: | Celsius/Fahrenheit |
| Certification: | UKAS calibration certificate |
| Conforms to Standard: | EN 13485 |
