Description

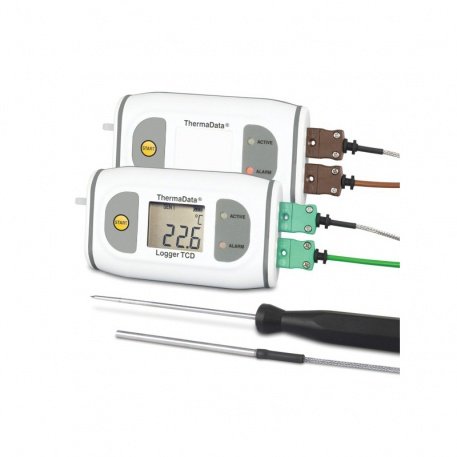

These dual-input ThermaData® thermocouple data loggers are housed in an ergonomic, water-resistant case designed to meet IP65 protection standards. Available in four models, with options for blind or LCD display and type K or T thermocouple input, these loggers measure temperature over the range of -100 to 1372 °C with a 0.1 °C resolution. The auto-ranging feature adjusts to 1 °C resolution over the range of 301 to 1372 °C.
At programmable intervals, the loggers record temperature, storing up to a maximum of 16,000 readings or 2 x 8,000 readings. Each logger features a red and green LED, with the flashing green LED indicating active logging and the flashing red LED signaling when pre-set alarms have been exceeded. Supplied with a USB lead, free downloadable software, and a traceable certificate of calibration, these loggers are available with optional UKAS certificates.
Note that thermocouple loggers are sold excluding probes.
The ThermaData logger connects to a PC via a serial or USB port lead. By selecting the appropriate icon, data can be downloaded and displayed as a graph, table, or summary. Users can analyze information by zooming in, saving as a 'studio file,' or exporting to other software packages.
The USB connection point is easily accessible by removing the end cap, allowing users to connect the logger to a PC via the supplied USB lead for uploading the collected temperature readings.
Technical Datasheet
Range - K Thermocouple: | -100 to 1372°C |
Range - T Thermocouple: | -100 to 400°C |
Operating Range: | -20 to +50 °C |
Resolution: | 0.1 °C to 300 °C thereafter 1 °C |
Accuracy: | ±0.4°C ±0.1% |
Memory: | 16000 or 2 x 8000 readings |
Sample Rate: | 6 seconds to 255 minutes |
Battery: | AA Tadiran - Li-SOCl |
Battery life: | Maximum 3 years @ 20 °C |
Sensor Type: | K or T thermocouple |
Display: | 12mm LCD |
Dimensions: | 34 x 66 x 109 mm |
Weight: | 177 grams |
Case Material: | ABS plastic with Biomaster anti-bacterial additive |
Country of Manufacture: | United Kingdom |
Guarantee: | two years |
Water/Dust Resistance: | IP65 protection |
Measurement Scale: | Celsius/Fahrenheit |
OS: | Windows |
Conforms to Standard: | EN 13485 |
