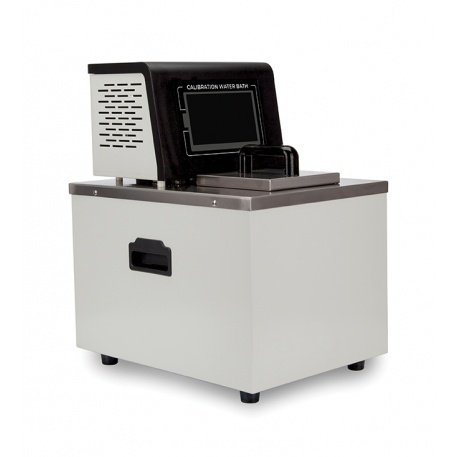

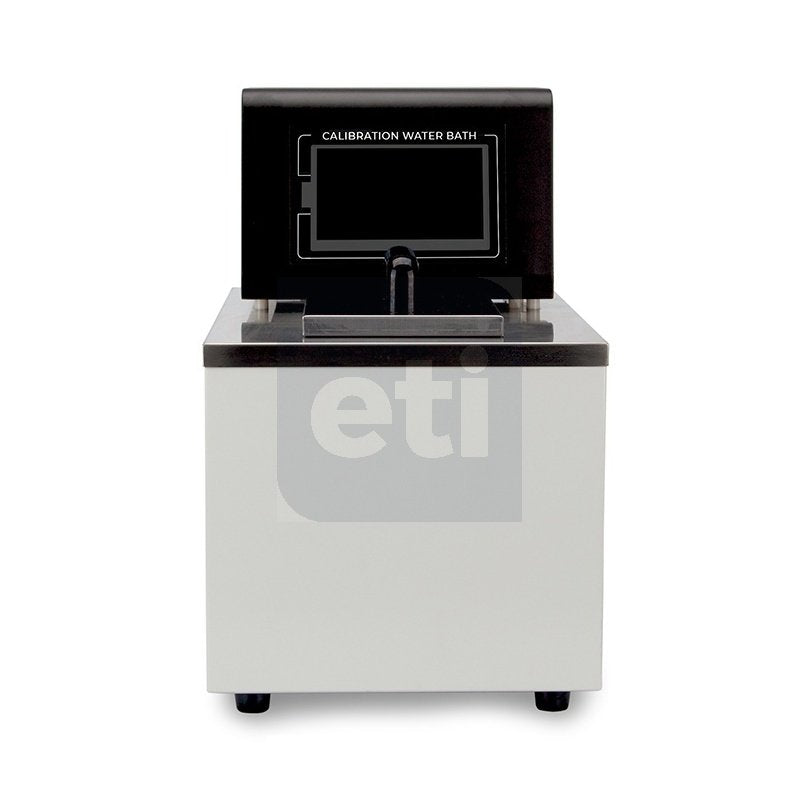

The Calibration Water Bath is a compact, precise, and dependable system designed to calibrate thermometers and temperature probes through the comparison method. Operating within the range of 25 °C to 95 °C, it ensures temperature accuracy of ±1 °C (+25 to 70 °C)* and stability of ±0.1 °C, with bath uniformity of ±0.1 °C from the center to any corner.
The user-friendly LED display requires minimal setup. The stainless steel bath has a 5-liter capacity and a variable flow/speed pump (0 to 20 liters per minute). It's advisable to use a Reference thermometer as a calibration reference for optimal accuracy checks. For continuous use in the temperature range of 25 to 60 °C, fill the bath with distilled water; for 60 to 80 °C, use a 15% glycerine water solution, and for 80 to 95 °C, opt for a suitable silicone oil. Each bath has a lid, drain tap, and carry handles.
| Range: |
+25 to 95 °C |
| Resolution: |
0.1 °C/°F |
| Accuracy: |
±1 °C (+25 to 70 °C) - better than ±0.2 °C if the calibration bath is used in conjunction with Reference Thermometer |
| Bath Capacity: |
5 litres |
| Pump Flow/Speed: |
0 to 20 litres per minute |
| Bath Stability: |
±0.1 °C over a 45 minute period |
| Bath Uniformity: |
±0.1 °C when measured from centre to any corner |
| Power Source: |
230 volt AC (±10%) 1.5A |
| Display: |
LED digital |
| Dimensions: |
Internal: 130 x 130 x 260 mm, External: 318 x 380 x 445 mm |
| Weight: |
12000 grams |
