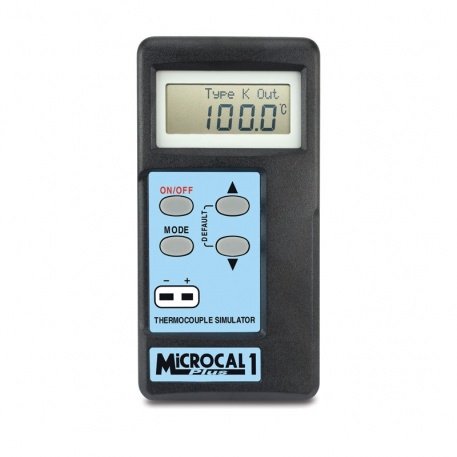

The MicroCal 1 Plus thermocouple simulator and thermometer streamline the regular verification of thermometer accuracies. This calibrator is designed to emulate a user-selected temperature for testing thermocouple types K, J, T, R, N, S, and E thermometers without requiring specialized equipment or conversion tables.
Offering both temperature measurement and simulation capabilities, the MicroCal 1 Plus features a customized 10mm LCD display with an alphanumeric line to guide users through parameter changes. Selectable parameters encompass °C/°F, auto power-off (enable/disable), CJC (internal/external), and display contrast adjustment.
An optional lead set is available, including seven leads—one for each thermocouple type (K, J, T, R, N, S, and E). These PVC leads are one meter in length, each equipped with two miniature thermocouple plugs. Additionally, every MicroCal 1 Plus comes with a one-meter PVC type K thermocouple lead featuring miniature connectors and a UKAS Certificate of Calibration for type K, indicating deviations from standards at different points.
